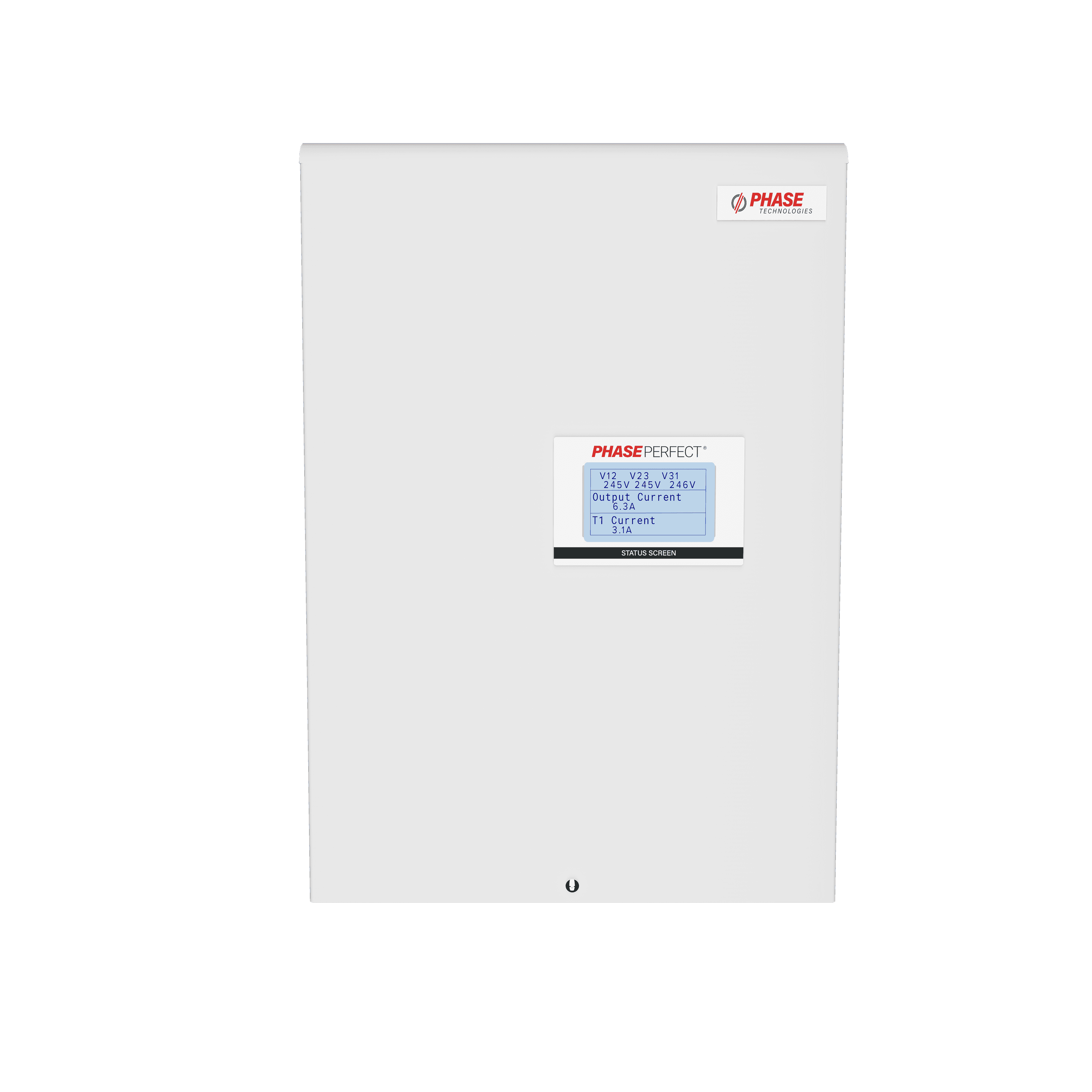

PHASE PERFECT® ENTERPRISE

Utility quality three-phase power anywhere you need it.

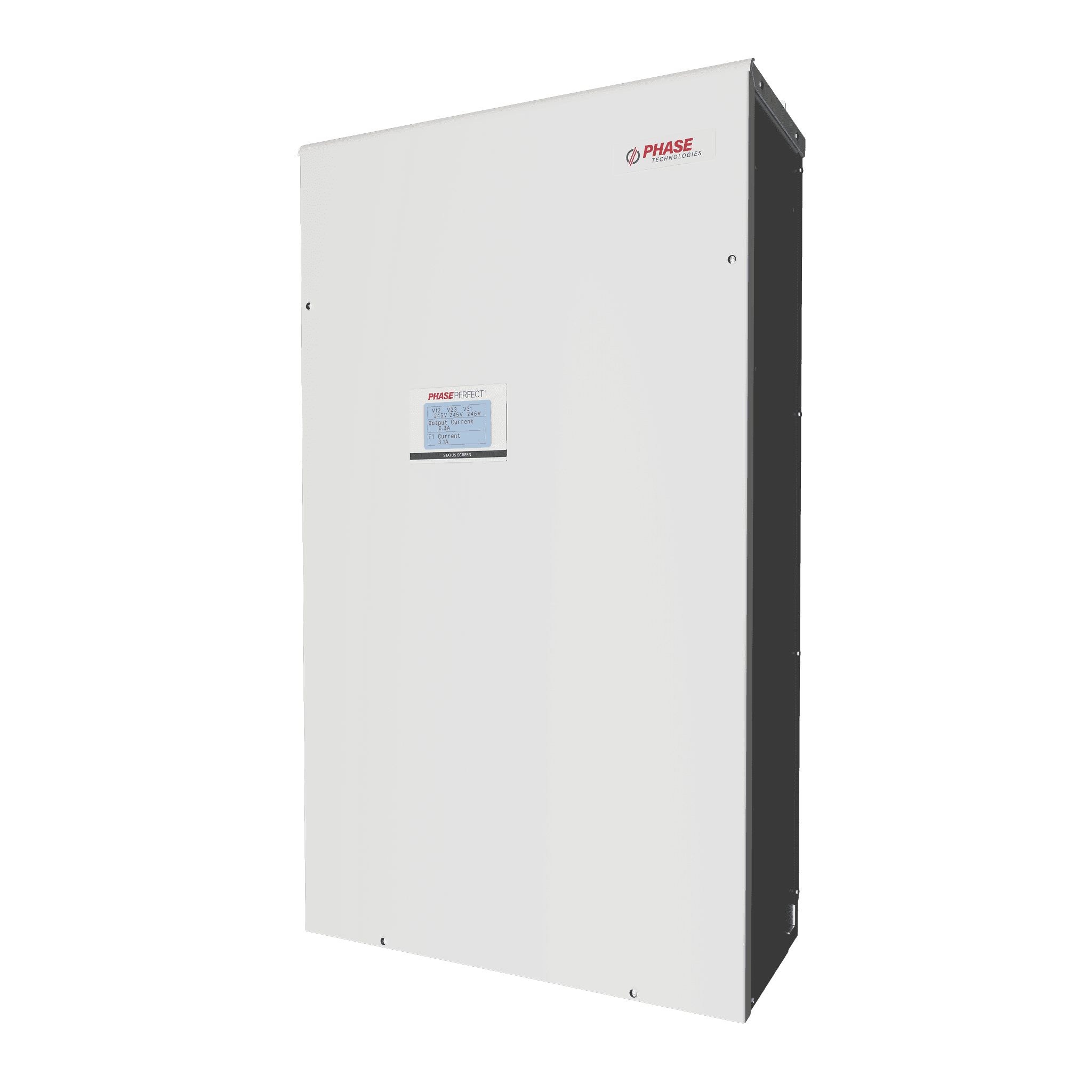

Three-phase power from a single-phase source anywhere you need it. Phase Perfect® Enterprise digital phase converter uses modern solid-state electronics to create utility-quality three-phase power anywhere. Over 20 years of development has resulted in a robust and durable phase converter capable of powering any load, from hard-starting motors to equipment with delicate embedded electronics.
Buy Phase Perfect® Enterprise

230V Model Comparison

ModelHorsepowerOutput kVAMax OutputMax InputStandbyDimensionsWeightPurchase Online
PTE0077.5HP10.8kVA26A45A70W26" x 17" x 8"60lbs
PTE01010HP14.9kVA36A62A74W26" x 17" x 8"65lbs
PTE01515HP21.6kVA52A90A77W28" x 17" x 9"71lbs
PTE02020HP26.6kVA64A111A80W28" x 17" x 9"72lbs

230V → 460V Voltage Doubling Model Comparison

ModelHorsepowerOutput kVAMax OutputMax InputStandbyDimensionsWeightPurchase Online
PTE2077.5HP10.8kVA13A45A200W34" x 18" x 9"65lbs
PTE21010HP14.9kVA18A62A320W34" x 18" x 9"68lbs
PTE21515HP22.4kVA27A94A435W34" x 18" x 9"74lbs
PTE22020HP26.6kVA32A111A550W34" x 18" x 9"80lbs

460V Model Comparison

ModelHorsepowerOutput kVAMax OutputMax InputStandbyDimensionsWeightPurchase Online
PTE4077.5HP10.8kVA13A22A52W31" x 17" x 15"56lbs
PTE41010HP14.9kVA18A32A68W31" x 17" x 15"56lbs
PTE41515HP22.4kVA27A48A71W31" x 17" x 15"70lbs
PTE42020HP26.6kVA32A55A74W31" x 17" x 15"72lbs

Phase Perfect® is also available in the highly customizable, original configuration with a larger chassis, higher power ratings, and additional options.


Power Quality

Hard-starting motors demand maximum output along with over-current protection. Delicate embedded electronics, which are getting more common by the day, demand perfectly balanced voltage always, no matter what the demands are on the rest of the system.

No other phase conversion technology can supply the brute force required to start the most demanding loads while protecting everything down to the smallest integrated circuit from damage. The Phase Perfect® uses modern microprocessor-controlled electronics to continuously adapt to changing conditions.

Don't subject your expensive equipment to improper phase timing and voltage imbalance inherent in dated phase conversion technologies. Get utility-quality power with Phase Perfect®.

Maintains phase-to-phase voltage balance within 2%

Electronic power factor correction produces near unity power factor

Sinusoidal input current with very low harmonic content

Output LC filter blocks digital switching-generated noise producing sinusoidal output

NEMA 1 all steel enclosure


Efficiency

An embedded microprocessor constantly ramps up or down based on the needs of the attached equipment. Full power is there when you need it without any wasted energy when you don’t. High efficiency under load and extremely low power utilization when not loaded add up to big cost savings compared to other phase conversion technologies.

The Phase Perfect® will also return power to your single-phase source when any three-phase load is in generating mode. Returning this power and making your utility meter run backwards is a much more efficient solution than wasting any excess power by heating a resistor.


Horsepower rating of largest or combined load that will be connected to the Phase Perfect®

The cost in cents per kilowatt/hour your utility charges you for electricity usage. You can estimate costs for your region by looking at the Average Price Chart on eia.gov.

Weeks per Year
Days per Week

Number of weeks per year and days per week you anticipate needing 3 Phase power available. For example: a business with typical operating hours might be 50 weeks per year and 5 days per week, while an elevator installation would require 52 weeks per year and 7 days per week.

Hours Per Day

The number of hours per day you anticipate not drawing a significant 3 Phase load. For example: a typical business might not draw a significant load right away in the morning, during breaks, or over the lunch hour, while an elevator might be idle 20 or more hours per day.


Typical woodworking or machine shop installation, estimated annual savings with Phase Perfect® versus Rotary:

$305.20/year

 Phase Perfect®Rotary Converter
Starting Load Horsepower12040
Standby Power Consumption280W2260W
Idle Power Cost3$11.20$316.40

Durability

Phase Perfect®’s have been powering equipment outdoors in the harshest of conditions for over 20 years. The brownouts, outages, and surges in remote areas that see frequent blizzards, lightning storms, and other severe weather has helped our engineers harden the Phase Perfect® into a highly reliable product.

The electronics have been made extremely robust, including the addition of costly film type line filter capacitors and custom inductors. The chassis is available with a NEMA 3R outdoor rating, so you can mount it anywhere without worry. The onboard software has also been continually upgraded with advanced monitoring and protections to help keep the Phase Perfect® and your expensive equipment safe.


Applications

A huge number of applications and equipment once considered "industrial" require three-phase power. This equipment is increasingly finding use on farms and ranches, in home shops, or other locations where utility-provided 3-phase isn't readily available.

Modern electronic safety features are showing up everywhere, and internet-connected equipment is becoming commonplace. Equipment with embedded electronics is highly sensitive to power quality, and some methods of phase conversion will damage these electronics. A Phase Perfect® will ensure any equipment runs just like it was connected to three-phase from the power company.

Common uses for the Phase Perfect® Enterprise: Elevators, HVAC, Wineries, Irrigation, Woodworking, Machine Shops, CNC Equipment, Polishing & Grinding

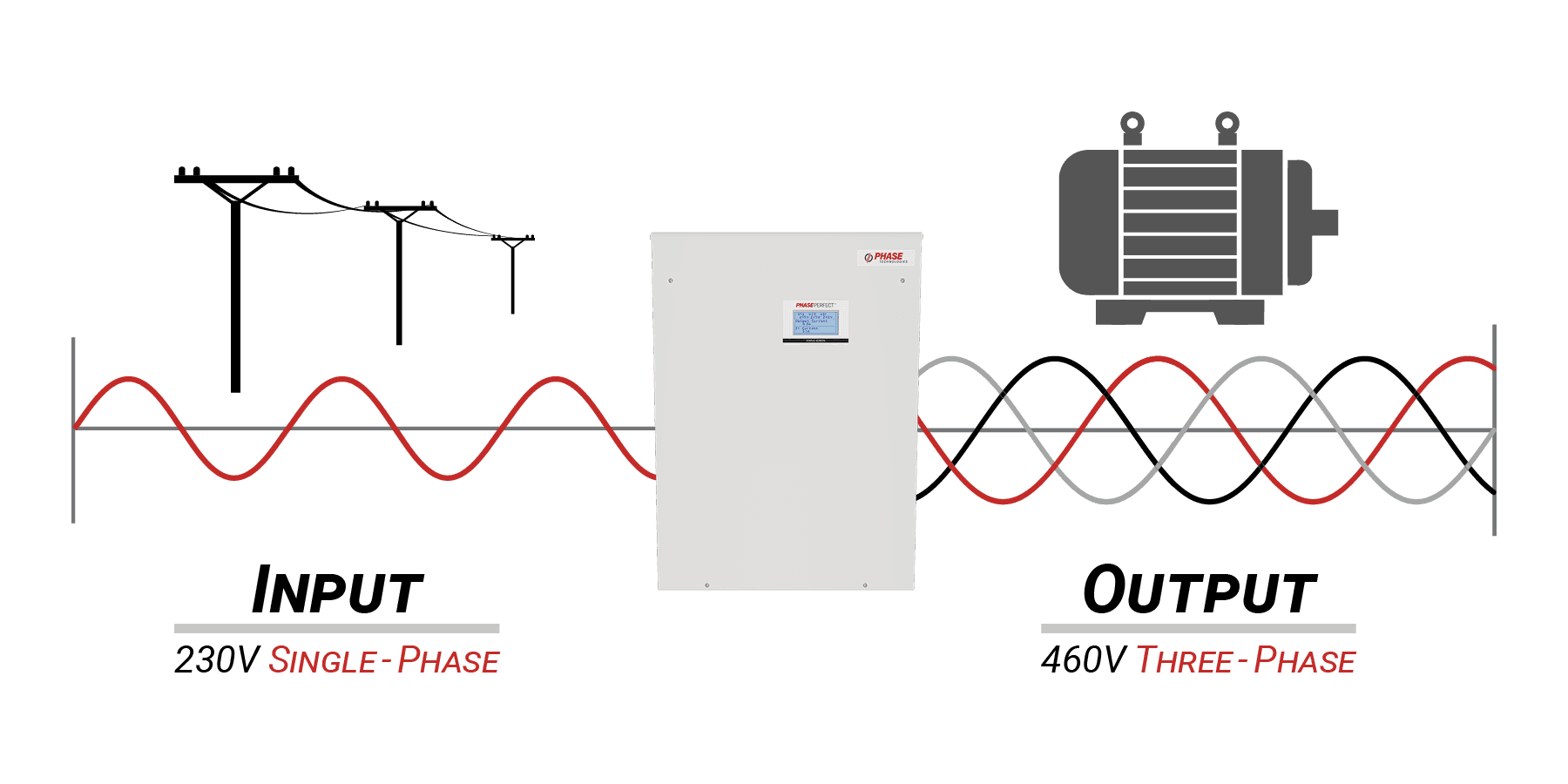

Voltage Doubling


The Phase Perfect® Enterprise models on this page are available in a voltage doubling configuration. If your application requires 460V power but you only have a 230V supply, these models will double your supply voltage without requiring a transformer.

Learn about voltage doubling

Convenience

  1. Mount with supplied mounting kit.
  2. Connect two wires in, three wires out.
  3. Ensure the Phase Perfect® Enterprise is well grounded.

Installation of a Phase Perfect® Enterprise is virtually “plug-and-play”. Equipment or a three-phase load center can be connected to the output just like they would be hooked up to utility three-phase.



Options

On/Off Switch

The optional, user-installed, on/off switch will completely turn off power to any connected devices, both on the two pass-through legs as well as the generated leg.

Extended Warranty

Although durable and robust in design, a little extra peace of mind never hurts. Phase Technologies is happy to offer an extended warranty for all of those applications that demand a bit extra.

NEMA 3R Outdoor Enclosure

Fully rated to be installed outdoor with a 40C temperature rating.


Motor Starting Ability

Phase converters have wildly different characteristics on their ability to start and run motor loads.

Read More

Voltage Balance

Maintaining tight voltage balance significantly alters the performance and longevity of electric motors.

Read More

Definitions

Common terms related to phase conversion technology used throughout this website and across the internet.

Read More

These pages contain comparisons of phase conversion technologies, including static, rotary, and digital phase conversion, applied to simple and complex scenarios.

Phase Perfect® provides uncommon value in Phase Conversion Technology


Documents


Phase Perfect® Original

Also available in the original, highly customizable, configuration. The original Phase Perfect® set the standard for what was possible with digital phase conversion technology. The available configuration options will ensure the needs of your application can be met with ease.
Read more
