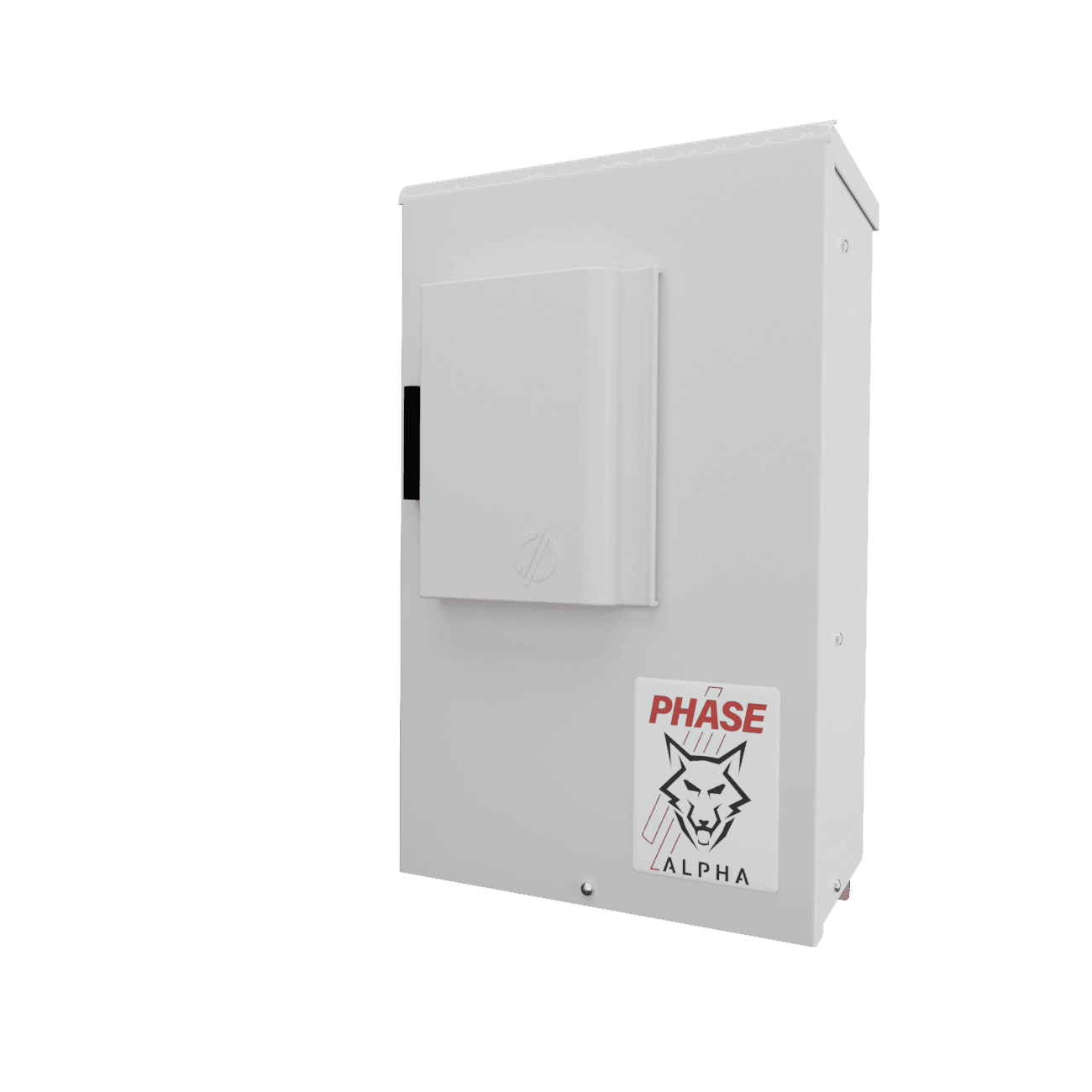

The Alpha Drive is our rugged, single-phase to three-phase converting variable frequency drive for residential and light commercial constant pressure installation. With capabilities to run both 2-wire, 3-wire, and 3-phase motors, the Alpha Drive offers simple setup, rugged hardware, NEMA Type 3R enclosure, and a low noise oil-filled 0 - 150 psi pressure transducer.

Enjoy commercial VFD quality in a drive that is easy to configure for home wells, irrigation systems, motor control, and soft start applications.

Phase Conversion

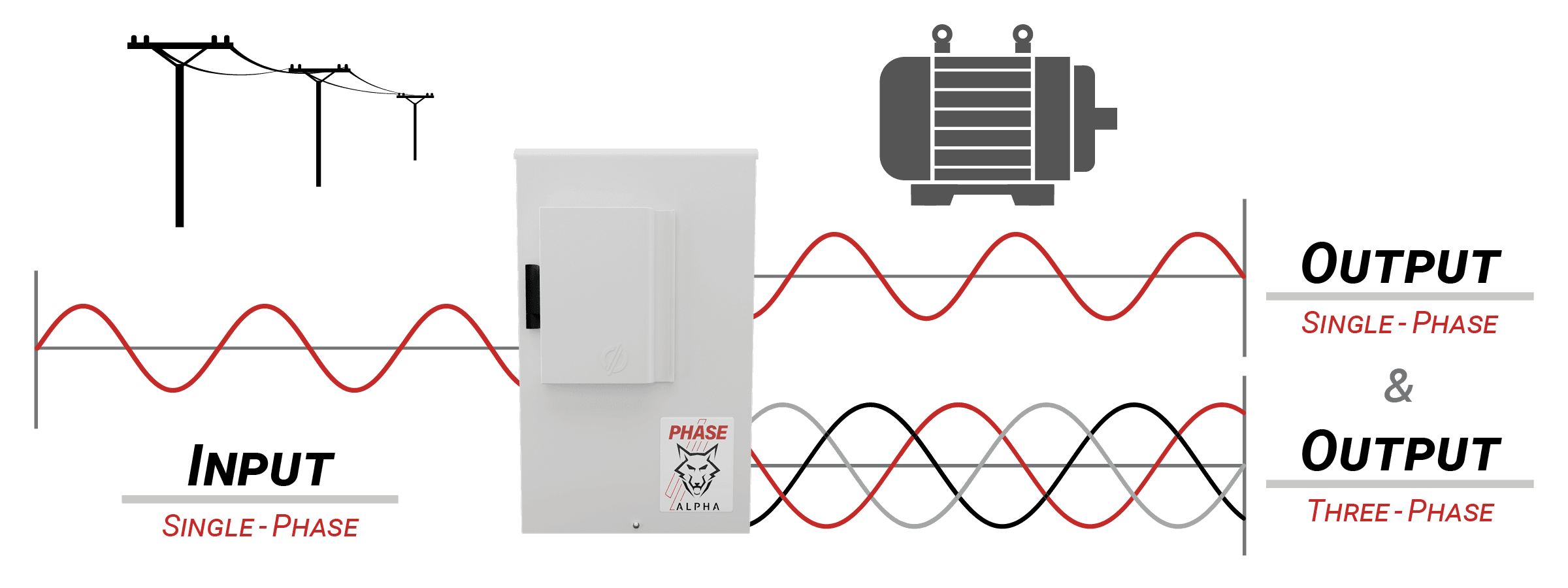

Convert single-phase power to three-phase power while utilizing advanced motor control capabilities and efficiencies.

Alpha Drive Phase Conversion

Perfect Pressure

Easy Setup Wizard

Set Up Constant Pressure in Minutes

Identical Keypad & Setup Across All Models

Large Backlit Display with Intuitive Menus

Simple Messages in Clear English

The Perfect Pressure™ Easy Setup Wizard is a user-friendly tool integrated into our VFDs to simplify the configuration of constant water pressure systems. Upon initial startup, the wizard guides users through a series of prompts to establish the desired pressure settings. This streamlined process allows for quick and efficient setup, often requiring only a few minutes to complete.

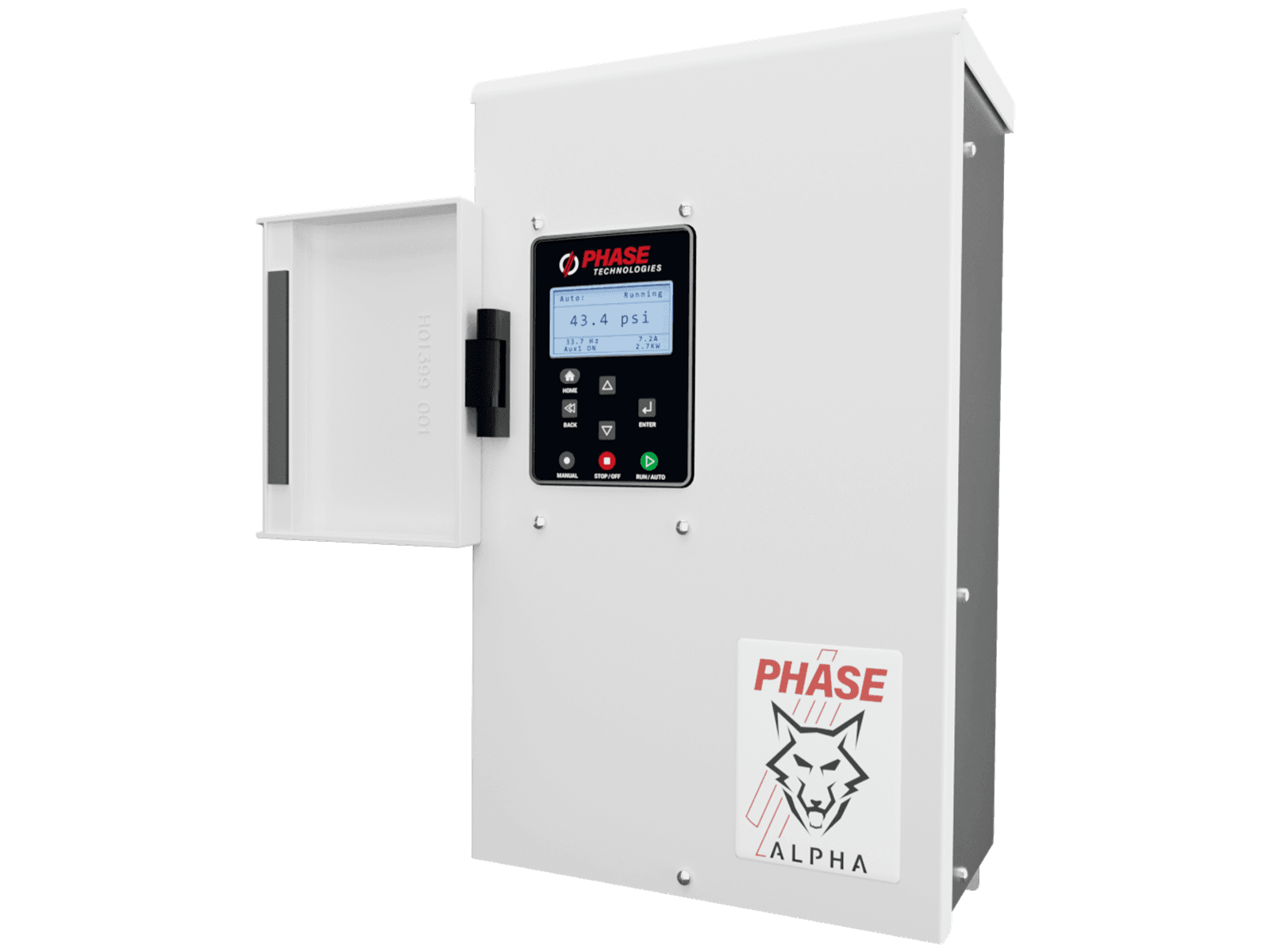

gauge and keypad
Perfect Pressure Wizzard

Perfect Pressure™ Setup Process

Configure a pump system to deliver constant pressure with just a few button presses. After the setup wizard, validate the system and walk away knowing it will supply constant pressure no matter the demands placed on it.

Variable frequency drives have always been hard to configure. Needing to hunt through a complex manual trying to cross-reference parameters, while trying to configure them on barely readable screen was normal. Phase VFD’s still have all those parameters under the hood if you want to fine-tune a pump system, but our intuitive wizard will have you running in just a few seconds.

Try this interactive Perfect Pressure™ Wizard to see how easy it is!


Run Constant Pressure? STEP 1

On start, use the arrows to toggle to "Run Constant Pressure Wizard?" - Press the ENTER key to proceed.

4-20mA psi RANGE STEP 2

Set the psi range of the 4-20mA sensor. Default is 150psi. Press ENTER to proceed.

psi SETPOINT STEP 3

Determines the pressure you want to maintain. The factory default is 50 psi. Use the arrow keys to change if desired. Press ENTER to proceed.

SUBMERSIBLE PUMP STEP 4

This parameter sets the ramp profile for a submersible pump. "YES" = ramps to 30HZ in the first second to prevent excessive wear on the thrust bearing. "NO" = The frequency will increase in a linear fashion from zero to max frequency. Use the arrow keys to toggle between the two settings. Press ENTER to proceed.

Disable Manual Mode STEP 5

The "Yes" value allows you to disable the MANUAL button run mode. "No" allows you to run the VFD manually on/off at max frequency.

OVERCURRENT LIMIT STEP 6

Setting for motor overload protection (service factor amp rating for the motor) using the arrows to toggle. Press ENTER to proceed.

RUN/AUTO STEP 7

Press the RUN/AUTO button to start the pump.

device-controller

Click Enter!

Run Constant Pressure Wizard?

9.1

Yes (Enter)

No (Back)

Durability and Improved Engineering

The Alpha Drive is a rugged, high-performance variable frequency drive built for long-lasting durability and superior efficiency. Designed to reset the industry standard in residential VFDs, the Alpha Drive will feature:

55°C (140°F) Temperature Rating

2x Overload Capacity Compared to Our Competition

2x Input Hardware Voltage Rating Compared to the Competition

- Handles Over 1,200 Volts of Peak-to-Peak Voltage

Standard EMI Choke Included

- Reduces Light Flickering and Interference with Other Electronics

Standard Output Reactor Included

- Designed for Running Single-Phase Motors

warranty

Consumer Confidence Warranty

Phase Technologies backs the Alpha Drive with a three-year warranty, including one-year no-questions-asked, ensuring reliability and hassle-free support for ultimate peace of mind.

product overview

Alpha Drive Documents
Technical Specifications

Input Power

Input Phase

Single-Phase

Input Voltage

115V / 230V

Input Voltage Range

96V — 275V

Input Frequency

Input Frequency

Output Power

Output Phase

Single-Phase or Three-Phase

Output Voltage Range

Equal to Input

Output Frequency

5 Hz – 120 Hz

Horsepower

0.5 HP - 5 HP

Output Power

2 - 11kW

Switching Frequency

2 kHz – 8 kHz

Output

V/f control

Show More Specs
