DXL
I
ndustrial
V
ariable
F
requency
D
rives
Three-Phase
Three-Phase
230 V and 460 V
230 V and 460 V
Easy Setup Wizards
Easy Setup Wizards
Open & Nema 1 Indoor Enclosure
Open & Nema 1 Indoor Enclosure
5-500+ HP
5-500+ HP
Industry Best Lead Times
Commercial Applications
Simple Setup
Economical
Made In The USA
A
merican
M
ade
Manufactured in the USA, Phase Technologies’ DXL industrial variable frequency drives are built for applications up to 500 HP and are the best choice for your motor control needs. Purchase a standalone drive or have it built into an enclosed panel using our 508A panel shop. Additionally, take advantage of extra components to boost the efficiency and performance of your unit.
R
ugged
D
esign
Protect your investment with our all-steel, NEMA 3R enclosures, guaranteed to keep out the elements while allowing your drive to operate at peak performance. We also offer options in Open and NEMA 1 configurations. All our enclosures are made in-house at our metal fabrication shop, ensuring the highest quality products, proudly made in America.
Perfect Pressure
Easy Setup Wizard
Set Up Constant Pressure in Minutes
Identical Keypad & Setup Across All Models
Large Backlit Display with Intuitive Menus
Simple Messages in Clear English

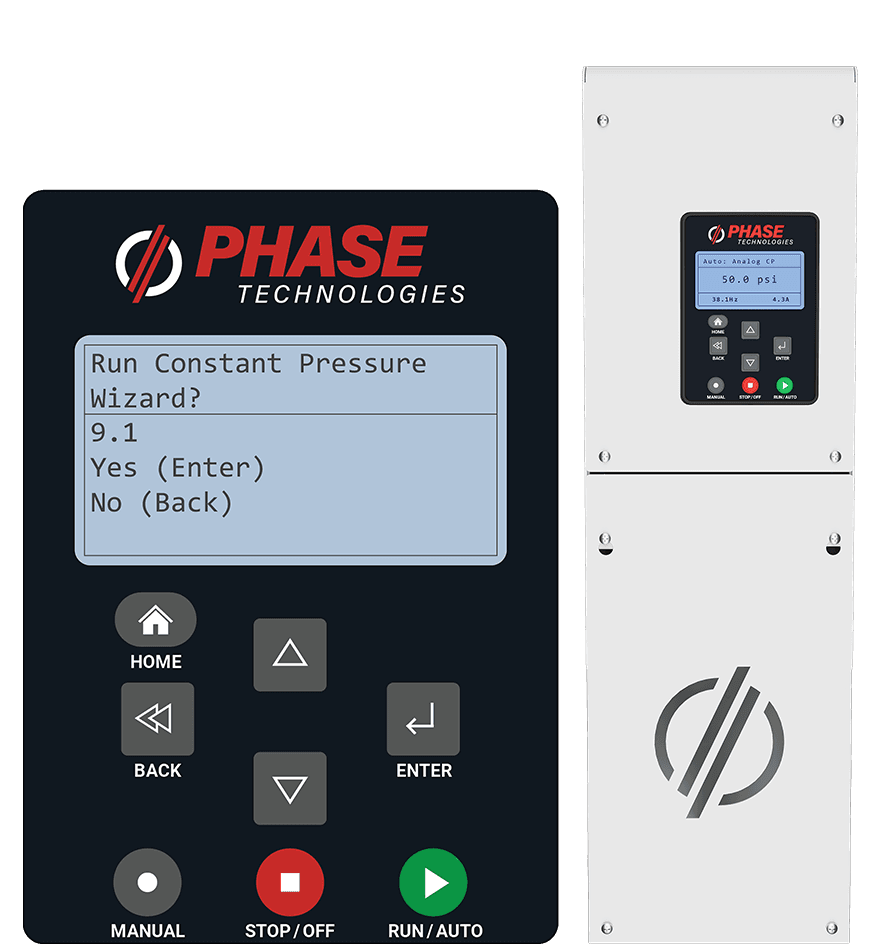

The Perfect Pressure™ Easy Setup Wizard is a user-friendly tool integrated into our VFDs to simplify the configuration of constant water pressure systems. Upon initial startup, the wizard guides users through a series of prompts to establish the desired pressure settings. This streamlined process allows for quick and efficient setup, often requiring only a few minutes to complete.
Perfect Pressure™ Setup Process
Configure a pump system to deliver constant pressure with just a few button presses. After the setup wizard, validate the system and walk away knowing it will supply constant pressure no matter the demands placed on it.
Variable frequency drives have always been hard to configure. Needing to hunt through a complex manual trying to cross-reference parameters, while trying to configure them on barely readable screen was normal. Phase VFD’s still have all those parameters under the hood if you want to fine-tune a pump system, but our intuitive wizard will have you running in just a few seconds.

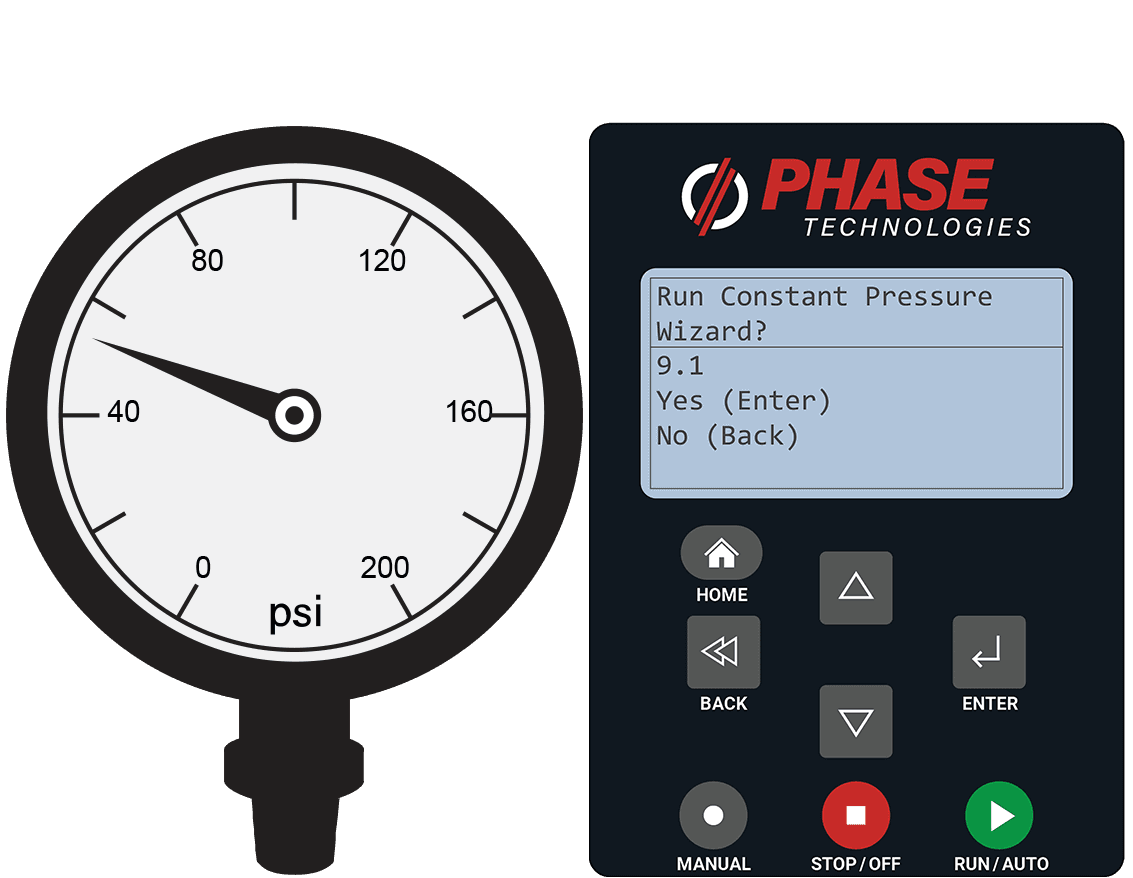

Try this interactive Perfect Pressure™ Wizard to see how easy it is!
Run Constant Pressure? STEP 1
On start, use the arrows to toggle to "Run Constant Pressure Wizard?" - Press the ENTER key to proceed.
4-20mA psi RANGE STEP 2
Set the psi range of the 4-20mA sensor. Default is 150psi. Press ENTER to proceed.
psi SETPOINT STEP 3
Determines the pressure you want to maintain. The factory default is 50 psi. Use the arrow keys to change if desired. Press ENTER to proceed.
SUBMERSIBLE PUMP STEP 4
This parameter sets the ramp profile for a submersible pump. "YES" = ramps to 30HZ in the first second to prevent excessive wear on the thrust bearing. "NO" = The frequency will increase in a linear fashion from zero to max frequency. Use the arrow keys to toggle between the two settings. Press ENTER to proceed.
Disable Manual Mode STEP 5
The "Yes" value allows you to disable the MANUAL button run mode. "No" allows you to run the VFD manually on/off at max frequency.
OVERCURRENT LIMIT STEP 6
Setting for motor overload protection (service factor amp rating for the motor) using the arrows to toggle. Press ENTER to proceed.
RUN/AUTO STEP 7
Press the RUN/AUTO button to start the pump.
Click Enter!
9.1
Yes (Enter)
No (Back)
Perfect For All Applications
Available as a stand alone drive and enclosed panel configuration
Power conditioning for smooth power input
Easy Set Up Wizards preprogrammed in your system for quick and easy startup
Great for all industrial applications
Irrigation
Livestock
Sewer Bypass
Lift Stations
Dewatering
Slurry & Tailings Removal
Wastewater Reuse
Dust & Fire Suppression
Evaporation Equipment
Process Water

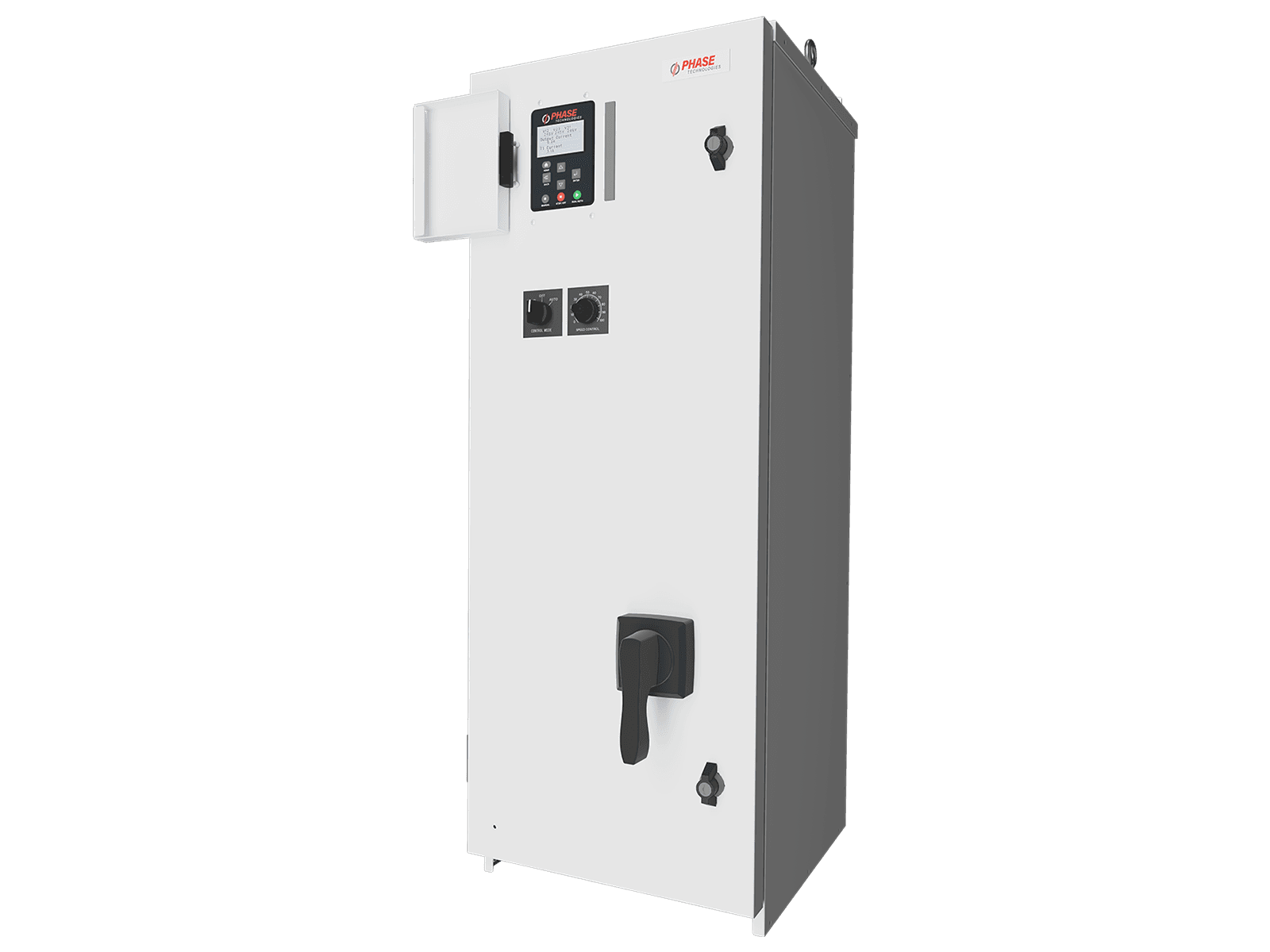

Craft Your Configured Panel

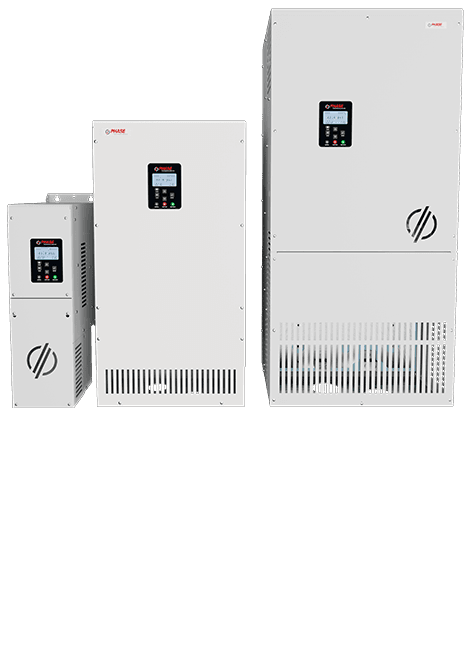

Our DXL model is a high-performance variable frequency drive (VFD) designed for controlling and optimizing motor speed in various industrial applications. With 230 V & 460 V inputs available, your power needs are easily met across many industries. Known for its robust design, the DXL offers advanced motor control, energy efficiency, and protection features. It is particularly effective in applications requiring precise motor speed adjustments.

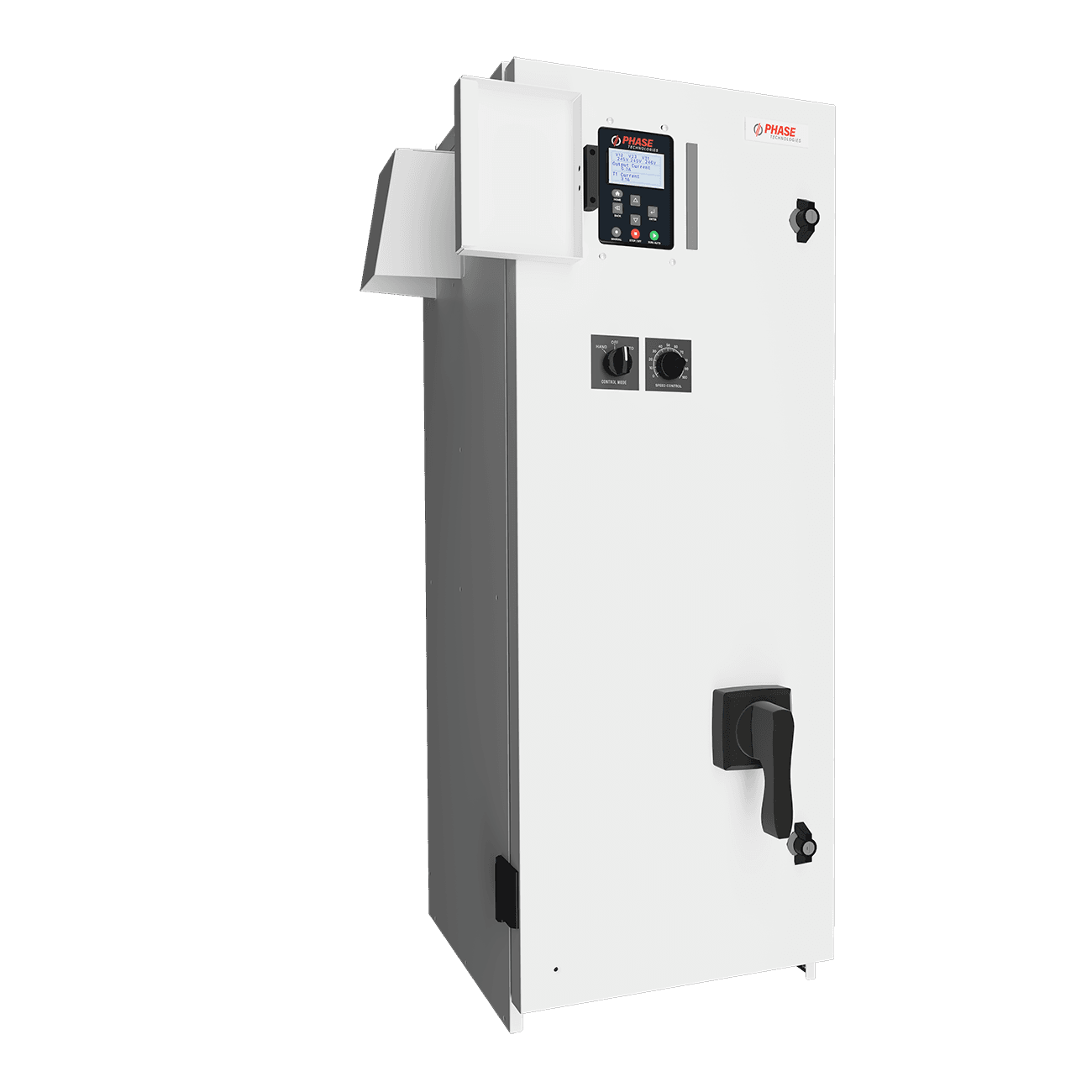

Our DXL drives are available as NEMA 1 or in an open configuration for panel builders. DXL VFD's can also be configured into one of our customizable NEMA 3R panels. No matter your need Phase Technologies has a VFD or panel that will fit your application.
MCCB – Service rated
HOA Switch
Speed Pot
Line Reactor
Run & Fault Light
Output Filter
Surge Protection
Protec
Strikesorb
Leg Kit
10-DAY
product overview
Input Voltage: 230, Input Phase: 3-Phase
| Model | Horsepower | Input Voltage | Output Voltage | Rated Input Current | Rated Output Current | Configure |
|---|---|---|---|---|---|---|
| DXL005 | 5 | 230 | 230 | 18 A | 18 A | |
| DXL007 | 7.5 | 230 | 230 | 25 A | 25 A | |
| DXL010 | 10 | 230 | 230 | 31 A | 31 A | |
| DXL015 | 15 | 230 | 230 | 46 A | 46 A | |
| DXL020 | 20 | 230 | 230 | 61 A | 61 A | |
| DXL025 | 25 | 230 | 230 | 75 A | 75 A | |
| DXL030 | 30 | 230 | 230 | 91 A | 91 A |
Input Voltage: 460, Input Phase: 3-Phase
| Model | Horsepower | Input Voltage | Output Voltage | Rated Input Current | Rated Output Current | Configure |
|---|---|---|---|---|---|---|
| DXL405 | 5 | 460 | 460 | 9 A | 9 A | |
| DXL407 | 7.5 | 460 | 460 | 13 A | 13 A | |
| DXL410 | 10 | 460 | 460 | 18 A | 18 A | |
| DXL415 | 15 | 460 | 460 | 25 A | 25 A | |
| DXL420 | 20 | 460 | 460 | 31 A | 31 A | |
| DXL425 | 25 | 460 | 460 | 38 A | 38 A | |
| DXL430 | 30 | 460 | 460 | 46 A | 46 A | |
| DXL440 | 40 | 460 | 460 | 61 A | 61 A | |
| DXL450 | 50 | 460 | 460 | 77 A | 77 A | |
| DXL460 | 60 | 460 | 460 | 86 A | 91 A | |
| DXL475 | 75 | 460 | 460 | 101 A | 107 A | |
| DXL4100 | 100 | 460 | 460 | 134 A | 142 A | |
| DXL4125 | 125 | 460 | 460 | 163 A | 172 A | |
| DXL4150 | 150 | 460 | 460 | 188 A | 198 A | |
| DXL4200 | 200 | 460 | 460 | 237 A | 250 A | |
| DXL4250 | 250 | 460 | 460 | 288 A | 304 A | |
| DXL4300 | 300 | 460 | 460 | 346 A | 365 A | |
| DXL4350 | 350 | 460 | 460 | 394 A | 415 A | |
| DXL4400 | 400 | 460 | 460 | 454 A | 478 A | |
| DXL4500 | 500 | 460 | 460 | 560 A | 590 A |
Input Power
Input Phase | Single-Phase or Three-Phase |
|---|---|
Input Voltage | 230 V | 460 V |
Input Voltage Range | 190 V — 264 V | 440 V — 520 V |
Input Frequency | 50/60 Hz |
Output Power
Output Phase | Three-Phase |
|---|---|
Nominal Output Voltage | 230 V | 460 V |
Output Voltage Range | 100 V – 270 V | 200 V — 530 V |
Output Frequency | 5 Hz – 120 Hz |
Horsepower | 5 HP - 500 HP |
Output Power | 1.5 - 300 kW |
Switching Frequency | 2 kHz – 5 kHz |
Output | V/f control Torque Control (Optional) |
