2XD

V

oltage

D

oubling

I

ndustrial

V

FD

&

P

anel

DX Series

Phase Converting

Phase Converting


230V - Voltage Doubling - 460V Options

230V - Voltage Doubling - 460V Options


5 - 15 HP

5 - 15 HP


NEMA 3R Outdoor Enclosure

NEMA 3R Outdoor Enclosure


508A Panel Shop
508A Panel Shop
Made In The USA
Made In The USA
Easy Setup Wizards
Easy Setup Wizards
Voltage Doubling
Voltage Doubling
Industry Best Lead Times
Industry Best Lead Times

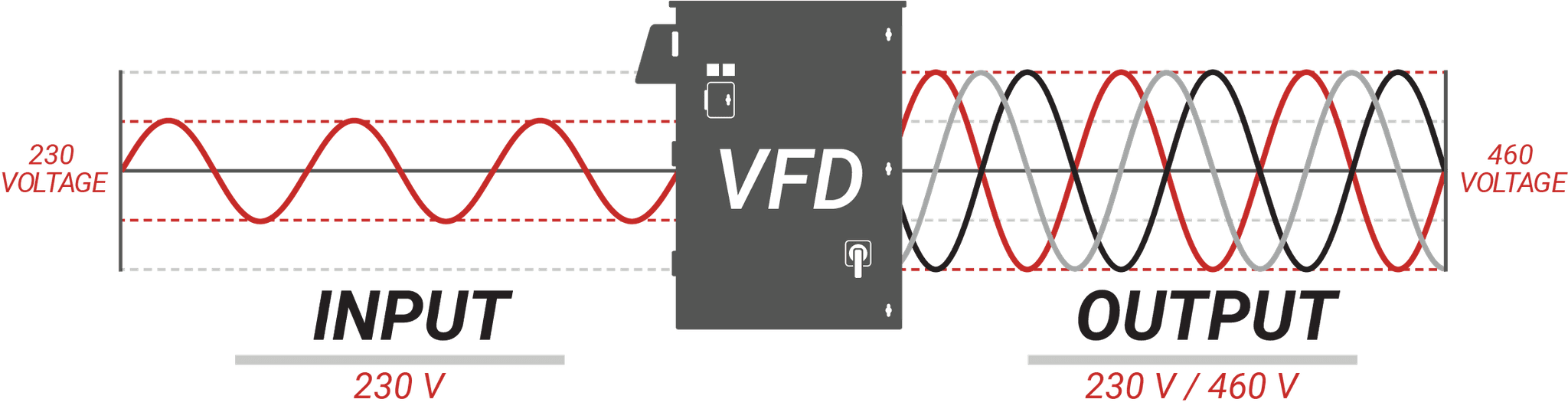

Phase Converting and Voltage Doubling

Cost Savings for Long Lead Applications

Phase conversion allows three-phase output from a single-phase input, giving you access to three-phase power anywhere. Voltage doubling eliminates the need for a transformer while minimizing motor lead wire size on 460V systems running on a 230V source, saving you hundreds on wire costs.

1 phase, 3 phase

A

merican

M

ade

The 2XD is a phase converting, voltage doubling, general purpose panel focused on solutions for residential and light commercial constant pressure. Our voltage doubling technology provides significant cable savings, which translates to more affordable drive and pump installations.

R

ugged

D

esign

Protect your investment with our all-steel, NEMA 3R enclosures, guaranteed to keep out the elements while allowing your drive to operate at peak performance. All our enclosures are made in-house at our metal fabrication shop, ensuring the highest quality products, proudly made in America.

Pumping Applications

Constant pressure from source to liquid distribution point

Phase Converting and Voltage Doubling capabilities for easy 460V three-phase power

Easy Set Up Wizards preprogrammed in your system for quick and easy startup

Great of all residential and commercial pumping applications

Common Applications

Irrigation

Livestock

Sewer Bypass

Lift Stations

Dewatering

Slurry & Tailings Removal

Wastewater Reuse

Dust & Fire Suppression

Evaporation Equipment

Process Water

Mining & Construction

Water, Oil & Mud Transfer

Drilling Mud Recirculation

Fuel Storage Tank Booster

Downhole Pumps

DX Series

Craft Your Configured Panel

Custom Built Panels

Design the right 2XD unit for your operation, and we will provide the perfect enclosure. Our Take advantage of our wide range of add-on components to enhance the efficiency and performance of your configured panel. Phase Technologies will build your unit to spec, at our manufacturing facility, and ship it directly to your home or business for easy installation.

2xd open closed panel

The 2XD line is powered by our DXL variable frequency drive combined with our configured panel options to bring you a custom unit for your operation.

Panel Shop Options

MCCB – Service rated

    HOA Switch

      Speed Pot

        Run & Fault Light

          Output Filter

            Power Supply

              Surge Protection

              • Protec
              • Strikesorb

              Leg Kit

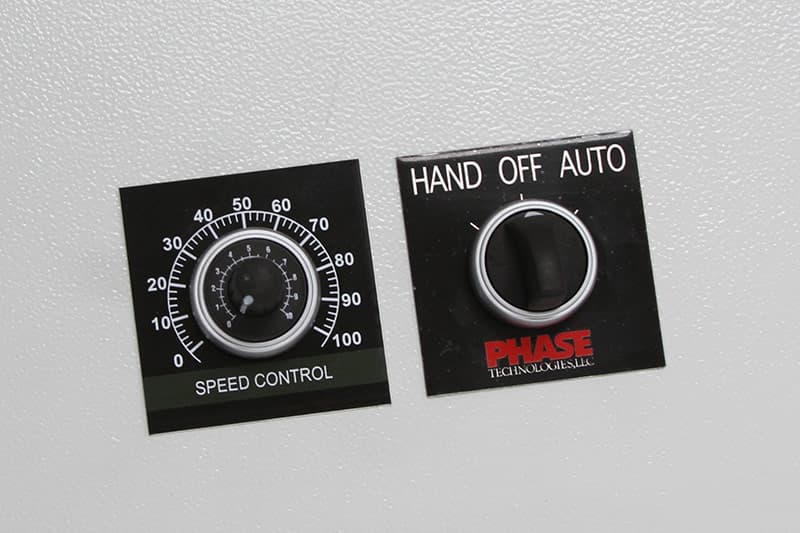

                Hand/Off/Auto (HOA) Switch with Speed Potentiometer

                Most models are available with an external mounted HOA switch and speed potentiometer. When the switch is in the Hand (Manual) position, the speed pot can be used to control motor speed on the main motor output of the drive. In the Auto position, the main output is controlled by external control signals through the various analog and digital inputs to the drive. For example, if the drive were configured in constant pressure control mode, the 4-20 mA signal from the pressure transducer would control motor speed. An HOA switch in the OFF position will stop the motor on the main output of the drive. The secondary drive output, Aux Power, will not be affected. It is typically controlled by another external switch on the panel door.

                10-DAY
                Made in the USA
                nomenclature
                2XD Nomenclature

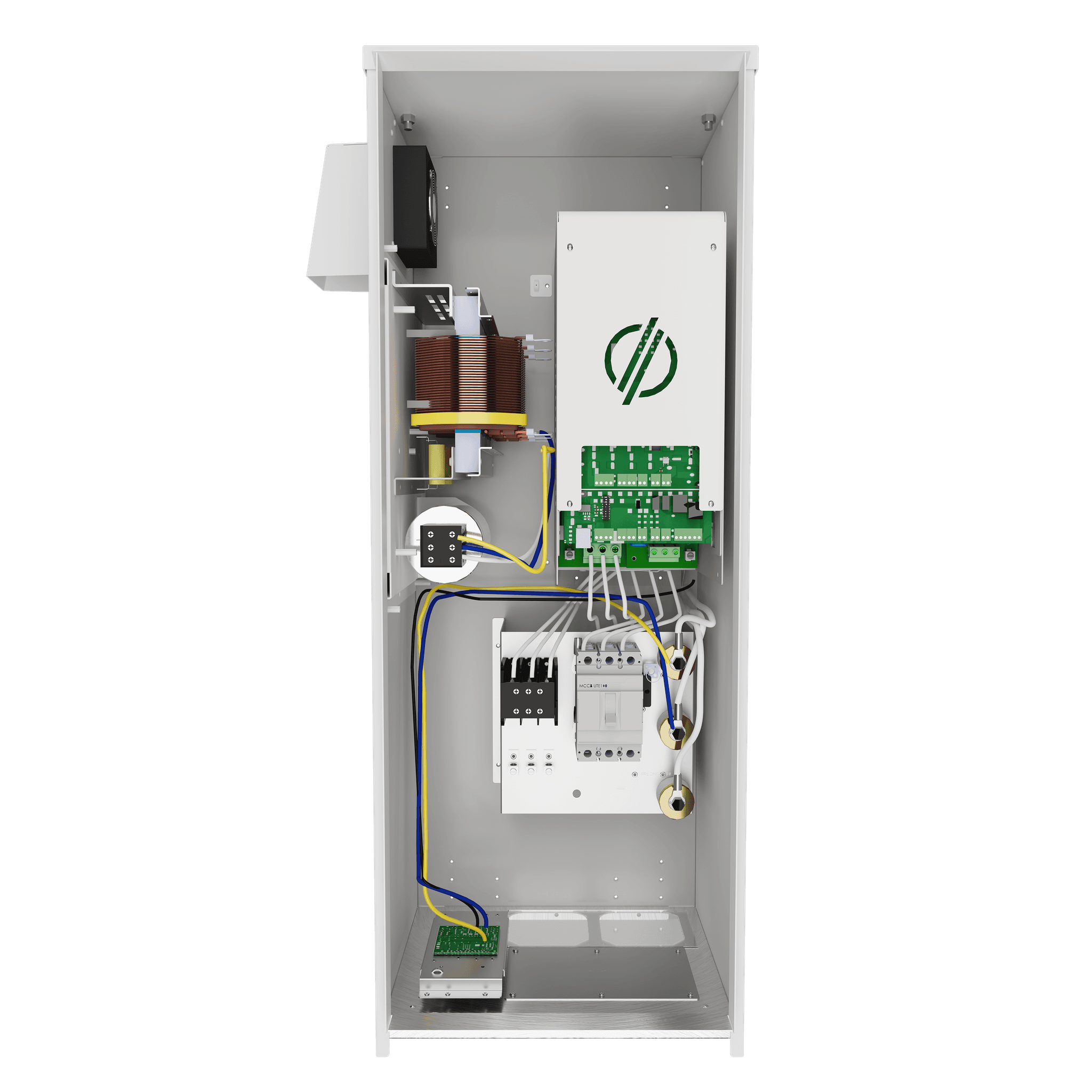

                Inside The Panel

                Engineered for maximum performance with minimal components, Phase Technologies configured panels are the definition of simplicity and efficiency. Gone are the days of large enclosures with small drives, heaps of wires, and bulky components. Enjoy the perfectly sized enclosure with all the necessary add-ons, intuitively crafted into a 3R enclosure.

                Inner Panel Design

                Drive:

                The DX is powered by a Phase Technologies DXL VFD

                Enclosure:

                Configured panels come standard with NEMA 3R all steel enclosures made in house.

                MCCB:

                Protect your drive with a Circuit Breaker, which is available in our 508A panel shop.

                Output Filter:

                Built with components to limit peak voltage, these filters are recommended with lead lengths up to and above 1,000 feet.

                ENC2 with DXE

                product overview

                2xd Models
                Input Voltage: 230, Input Phase: 1-Phase
                ModelHorsepowerInput VoltageOutput VoltageInput CurrentOutput Current Configure
                2XD205523046030 A9 A
                2XD2077.523046052 A13 A
                2XD2101023046064 A18 A
                2XD2151523046087 A24 A
                2XD Documents
                Technical Specifications

                Input Power

                Input Phase

                Single-Phase

                Input Voltage

                230 V

                Input Voltage Range

                190 V – 275 V

                Input Frequency

                60 Hz

                Output Power

                Output Phase

                Three-Phase

                Nominal Output Voltage

                460 V

                Output Voltage Range

                440 V – 530 V

                Output Frequency

                5 Hz – 300 Hz

                Horsepower

                5 HP - 15 HP

                Output Power

                7 – 12 kW

                Switching Frequency

                2 kHz – 8 kHz

                Output

                V/f control Torque Control (Optional)
