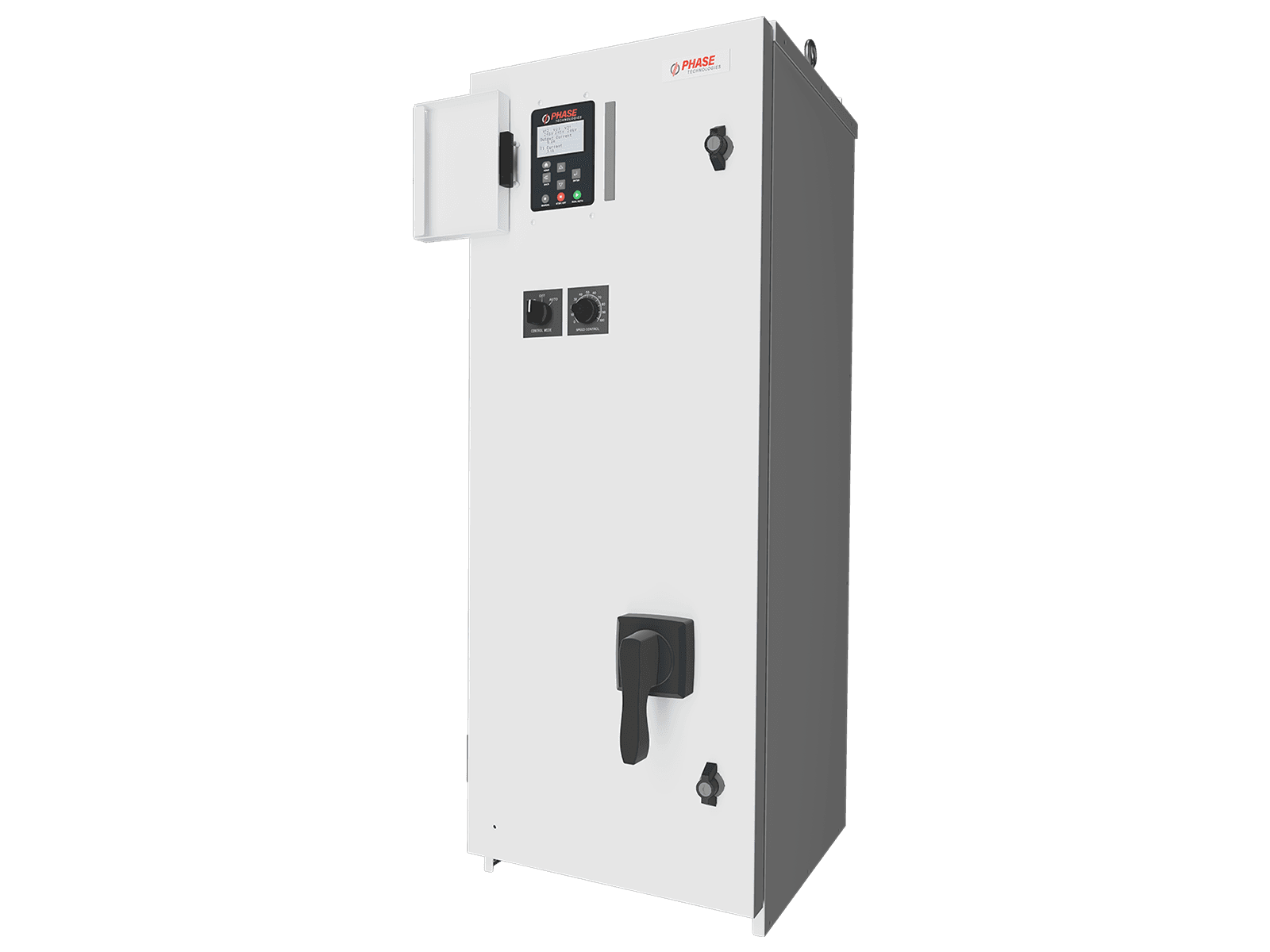

2XD SERIES 240V > 480V
Phase-Converting Voltage-Doubling VFD
Designed specifically for deep pumping applications. Both phase-converting and voltage-doubling VFD for a single 7.5HP motor load.
Phase Technologies has designed a simple, phase converting, voltage doubling solution for residential and light commercial constant pressure installations (5-15hp). The 2XD product line offer simple setup, rugged hardware, 3R cabinets, and a top of the line oil filled pressure transducer standard with every package.
If you’ve installed submersible pumps you know motor cable is a costly expense. Voltage doubling, developed exclusively by Phase Technologies, “doubles” the voltage from 240V to 480V. In turn, it requires smaller gauge motor cable. This saves significant cost on pump and drive installations, especially in deep wells. The 2XD series also integrates and optional sine filter that is less expensive than a dv/dt filter making this the obvious choice for deep submersible installations.
Demand-driven constant pressure for home wells is now inexpensive, reliable, and a luxury available to all homeowners thanks to Perfect Pressure, standard with all SD and 2XD systems. Perfect Pressure only requires a few minutes of setup time and is capable of controlling the most complicated plumbing systems with ease. With constant pressure, plumbing systems run smoothly with fewer instances of short cycling.
Industries served, Wells Pumps, Irrigation Pumps, Motor Control
- NEMA 3R Enclosure w/Insect Guards
- Easy Perfect Pressure™ Setup
- Strikesorb Surge Protection
- 2-Year Warranty
- 122° F (50° C) Rated
- Easy Field Serviceability
- Includes 0 - 150 psi transducer
|General Power Specs|
|Rated HP||5 HP||7.5 HP||10 HP||15 HP|
|Rated Input Current||31A||52A||64A||87A|
|Input Voltage||240V, single-phase|
|Rated Output Current||10A||13A||18A||24A|
|Output Voltage||480V, three-phase|
|Recommended Breaker Size||40A||60A||80A||100A|
|Min Wire Size||N/A||N/A||N/A||N/A|
|Enclosure size (H x W x D)||29 x 16 x 12"||29 x 16 x 12"||29 x 16 x 12"||29 x 16 x 12"|
|Shipping Weight||16 lbs||17 lbs||19 lbs||N/A lbs|
