Motor Starter
A
cross
T
he
L
ine

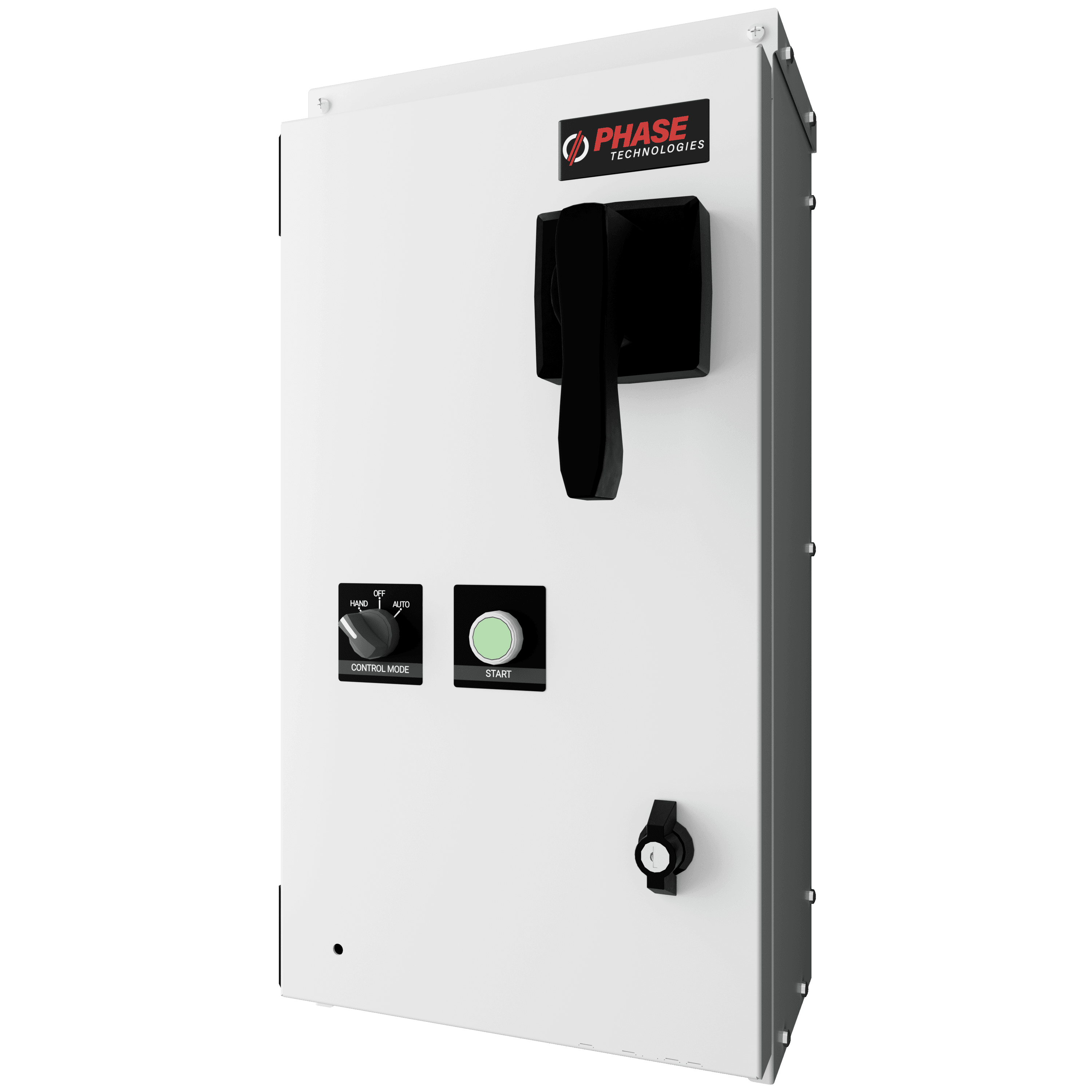

Motor Across the Line Starter
Motor Across the Line Starter

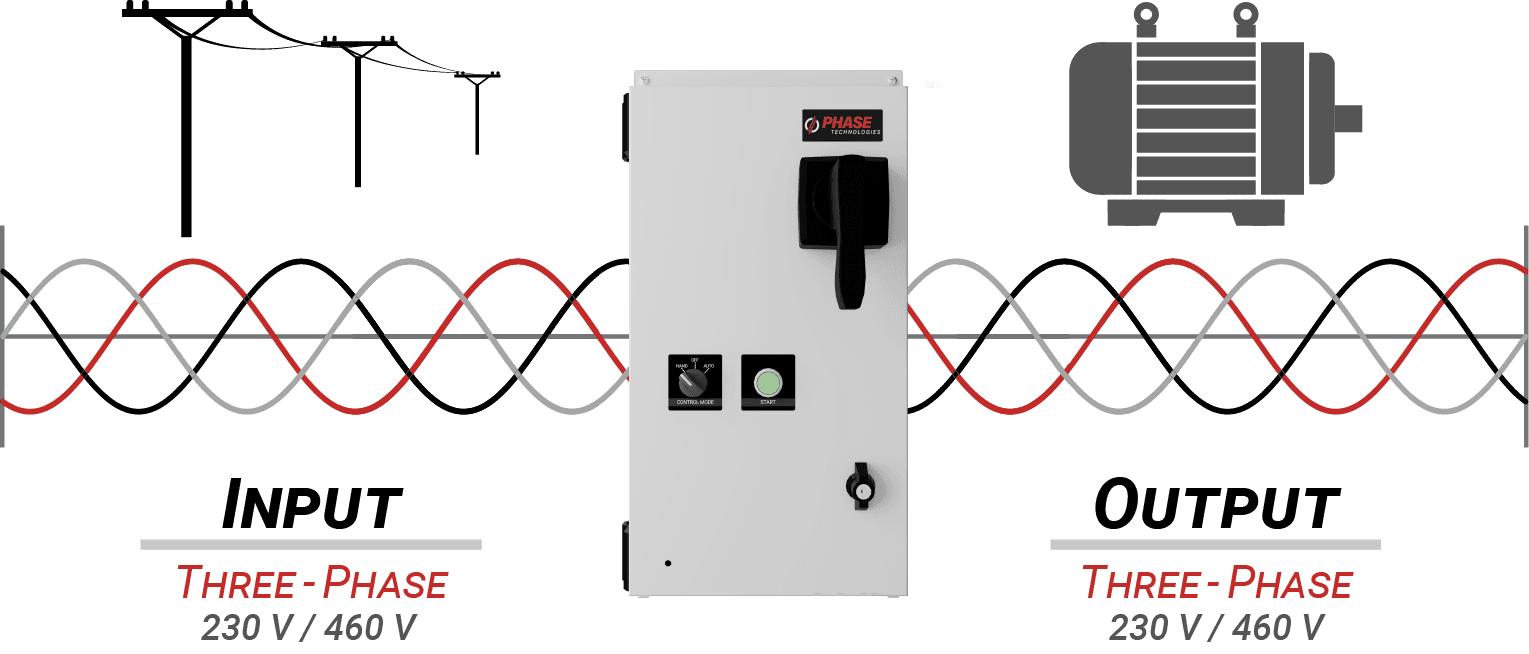

230 V & 460 V
230 V & 460 V
5 – 100 HP
5 – 100 HP
Motor Protection
Motor Protection
Motor Protection
508A Panel Shop
Simple Installation
NEMA 3R
(Outdoor Enclosure)
Long Lasting Durability
Key Features:
Heavy-duty contactor and overload protection to safeguard motor performance
NEMA-rated enclosures for durability in demanding environments
Hand/Off/Auto (HOA) switch for flexible control options
Start/Stop push buttons for easy manual operation
Pre-wired for quick installation and minimal setup time
Compatible with single- or three-phase motors across common voltage ranges
Cost-Saving Design eliminates the need for expensive external pump protection relays
A
merican
M
ade
The Across the Line Motor Starter delivers reliable motor protection for smooth, efficient operation.
Available up to 125 HP, the Across the Line Motor Starter is offered as a fully enclosed NEMA 3R panel, it includes a service rated breaker/disconnect, surge protection and is custom-built by our UL 508A panel shop. With intuitive controls and robust overload protection, the Across the Line Motor Starter delivers the power and flexibility you need to run a wide range of motor-driven applications with confidence.
Across The Line Motor Starter
Phase Technologies’ Across the Line Motor Starter provides a dependable and straightforward solution for controlling electric motors in a wide range of industrial, agricultural, and commercial applications. Built for performance and ease of installation, this direct-on-line starter delivers full voltage to the motor for immediate startup without the complexity of soft starts or variable speed control.
Industrial
Constant Torque
Rotating Equipment
Conveyor Belts
Rock Crushers
Compressors
HVAC
Circulating Pumps
Cooling Towers
Supply Fans
Exhaust Fans
Air Handlers
Oil & Gas
Water, Oil & Mud Transfer
Drilling Mud Recirculation
Fuel Storage Tank Booster
Downhole Pumps
Agriculture
Irrigation
Livestock
Municipal
Sewer Bypass
Lift Stations
Mining & Construction
Dewatering
Slurry & Tailings Removal
Wastewater Reuse
Dust & Fire Suppression
Evaporation Equipment
Process Water
Mining & Construction
Product Overview
Input: 230 V, 3-Phase
| Model | Horsepower | Rated Input Current | Rated Output Current | Buy |
|---|---|---|---|---|
| MS005 | 5 | 17 A | 17 A | |
| MS007 | 7.5 | 26 A | 26 A | |
| MS010 | 10 | 32 A | 32 A | |
| MS015 | 15 | 50 A | 50 A | |
| MS020 | 20 | 63 A | 63 A | |
| MS030 | 30 | 85 A | 85 A | |
| MS040 | 40 | 125 A | 125 A | |
| MS050 | 50 | 150 A | 150 A |
Input: 460 V, 3-Phase
| Model | Horsepower | Rated Input Current | Rated Output Current | Buy |
|---|---|---|---|---|
| MS405 | 5 | 10 A | 10 A | |
| MS407 | 7.5 | 13 A | 13 A | |
| MS410 | 10 | 17 A | 17 A | |
| MS415 | 15 | 26 A | 26 A | |
| MS420 | 20 | 32 A | 32 A | |
| MS430 | 30 | 50 A | 50 A | |
| MS440 | 40 | 63 A | 63 A | |
| MS450 | 50 | 75 A | 75 A | |
| MS460 | 60 | 85 A | 85 A | |
| MS475 | 75 | 125 A | 125 A | |
| MS4100 | 100 | 150 A | 150 A |
