Omega Drive
C
onstant
P
ressure
V
ariable
F
requency
D
rive
Single-Phase Input & Output
Single-Phase Input & Output
120 V & 240 V
120 V & 240 V
NEMA 3R Outdoor Enclosure
NEMA 3R Outdoor Enclosure
.3 – 2 HP
.3 – 2 HP
Large Graphic Display
Simple Constant Pressure Setup
Simple Installation
Easy Setup Wizards
NEMA 3R
(Outdoor Enclosure)
A
merican
M
ade

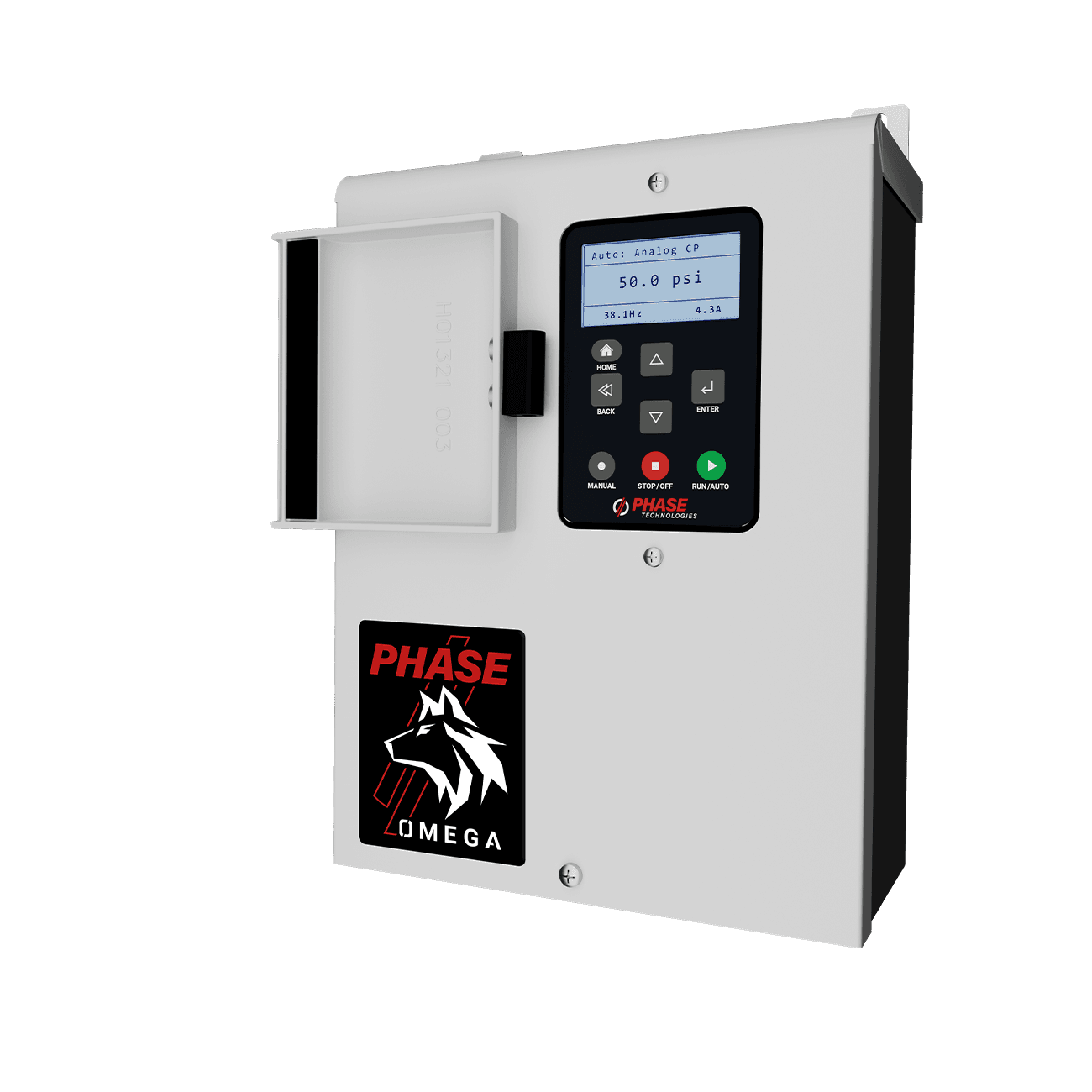

The Omega Drive is our rugged, single-phase variable frequency drive for residential and light commercial constant pressure installation. Compatibility to run 2-wire and 3-wire motors makes it ideal for retrofits. The Omega Drive offers simple setup, rugged hardware, NEMA Type 3R enclosure, and a low noise oil-filled 0 - 150 psi pressure transducer.
Enjoy commercial VFD quality in a drive that is easy to configure for home wells, irrigation systems, motor control, and soft start applications.
Single-Phase Input & Output
Compatible with Two-Wire & Three-Wire Motors
Our Omega Drive provides single phase input and output for easy residential and light commercial constant pressure installations
for both two and three wire pump motors.
Perfect Pressure
Easy Setup Wizard
The Perfect Pressure™ Easy Setup Wizard is a user-friendly tool integrated into our VFDs to simplify the configuration of constant water pressure systems. Upon initial startup, the wizard guides users through a series of prompts to establish the desired pressure settings. This streamlined process allows for quick and efficient setup, often requiring only a few minutes to complete.
Setup Constant Pressure in Minutes
Identical Keypad Interface & Setup Across All Models
Large Backlit Display with Intuitive Menus
Clear, Operator-Friendly Messaging
Perfect Pressure™ Setup Process
Configure a pump system to deliver constant pressure with just a few button presses. After the setup wizard, validate the system and walk away knowing it will supply constant pressure no matter the demands placed on it.
Most Variable frequency drives are hard to configure. Needing to hunt through a complex manual trying to cross-reference parameters, while trying to configure them on barely readable screen was normal. Phase VFD’s still have all those parameters under the hood if you want to fine-tune a pump system, but our intuitive wizard will have you running in just a few seconds.
Try this interactive Perfect Pressure™ Wizard to see how easy it is!
Run Constant Pressure? STEP 1
On start, use the arrows to toggle to "Run Constant Pressure Wizard?" - Press the ENTER key to proceed.
4-20mA psi RANGE STEP 2
Set the psi range of the 4-20mA sensor. Default is 150psi. Press ENTER to proceed.
psi SETPOINT STEP 3
Determines the pressure you want to maintain. The factory default is 50 psi. Use the arrow keys to change if desired. Press ENTER to proceed.
SUBMERSIBLE PUMP STEP 4
This parameter sets the ramp profile for a submersible pump. "YES" = ramps to 30HZ in the first second to prevent excessive wear on the thrust bearing. "NO" = The frequency will increase in a linear fashion from zero to max frequency. Use the arrow keys to toggle between the two settings. Press ENTER to proceed.
Disable Manual Mode STEP 5
The "Yes" value allows you to disable the MANUAL button run mode. "No" allows you to run the VFD manually on/off at max frequency.
OVERCURRENT LIMIT STEP 6
Setting for motor overload protection (service factor amp rating for the motor) using the arrows to toggle. Press ENTER to proceed.
RUN/AUTO STEP 7
Press the RUN/AUTO button to start the pump.
Click Enter!
9.1
Yes (Enter)
No (Back)
The Omega Drive is a rugged, high-performance variable frequency drive built for long-lasting durability. Designed to reset the industry standard in residential VFD’s, the Omega Drive features:
50°C (122°F) Temperature Rating
2x Overload Capacity Compared to Our Competition
2x Input Transient Voltage Rating Compared to the Competition
— Handles Over 1,200 Volts of Transient Peak-to-Peak Voltage
Standard EMI Choke Included
— Reduces Light Flickering and Interference with Other Electronics
Standard Output Reactor Included
— Designed for Running Single-Phase Motors
Warranty
Consumer Confidence Warranty
Phase Technologies backs the Omega Drive with a three-year warranty, including one-year no-questions-asked, ensuring your peace of mind.
Product Overview
Input Power
Input Phase | Single-Phase |
|---|---|
Input Voltage | 120 | 240 VAC |
Input Voltage Range | 90 V to 160 V | 180 V to 260 V |
Max Input Current | 24 A |
Input Frequency | 60 Hz |
Output Power
Output Phase | Single-Phase |
|---|---|
Output Voltage Range | Equal to Input |
Output Frequency | 5 Hz – 120 Hz |
Horsepower | .3 HP - 2HP |
Max Output Current | 14 A |
Output Power | 1.5 kW |
Switching Frequency | 2 kHz – 8 kHz |
Output | V/f control |
