1LH

P

hase

C

onverting

L

ow

H

armonic

V

FD

P

anel

intro image

Low Harmonic

Low Harmonic


Voltage Doubling

Voltage Doubling


5 – 200 HP

5 – 200 HP


Nema 3R Outdoor Enclosure

Nema 3R Outdoor Enclosure


Power Conditioning
Power Conditioning
Low Harmonic
Low Harmonic
Regenerative Power
Regenerative Power
Voltage Doubling
Voltage Doubling
508A Panel Shop
508A Panel Shop

Phase Conversion & Voltage Doubling

Cost Savings for Long Lead Applications

Phase conversion allows three-phase output from a single-phase input, giving you access to three-phase power anywhere. Voltage doubling eliminates the need for a transformer while minimizing motor lead wire size on 460V systems running on a 230V source, saving you hundreds on wire costs.

1 phase, 3 phase

A

merican

M

ade

An American-manufactured VFD panel with capabilities for applications up to 200 HP, Phase Technologies’ 1LH (Low Harmonic) VFD panels are the solution to your motor control problems. Purchase as a standalone drive or customize your unit in an enclosed panel configuration using our 508A panel shop. Additionally, take advantage of extra add-on components to increase the efficiency and performance of your unit.

R

ugged

D

esign

Protect your investment with our all-steel, NEMA 3R enclosures, guaranteed to keep out the elements while allowing your panel to operate at peak performance. All our enclosures are made in-house at our metal fabrication shop, ensuring the highest quality products, proudly made in America.

perfect for all applications

Available as a stand alone drive and enclosed panel configuration

Build online with our Product Builder and receive your unit within 30 days of order confirmation

Easy Set Up Wizards preprogrammed in your system for quick and easy startup

IEEE-519 compliant without need for an external harmonic filter

Phase Converting capabilities for single phase or three phase input

Common Applications

Irrigation

Livestock

Sewer Bypass

Lift Stations

Dewatering

Slurry & Tailings Removal

Wastewater Reuse

Dust & Fire Suppression

Evaporation Equipment

Process Water

Mining & Construction

Constant Torque

Rotating Equipment

Conveyor Belts

Rock Crushers

Compressors

Circulating Pumps

Cooling Towers

Supply Fans

Exhaust Fans

Air Handlers

Water, Oil & Mud Transfer

Drilling Mud Recirculation

Fuel Storage Tank Booster

Downhole Pumps

ENC6

Craft Your Configured Panel

Custom Built Panels

Design the right 1LH unit for your operation, and we will provide the perfect enclosure. Take advantage of our wide range of add-on components to enhance the efficiency and performance of your configured panel. Phase Technologies will custom build your unit, at our manufacturing facility, and ship it directly to your home or business for easy installation.

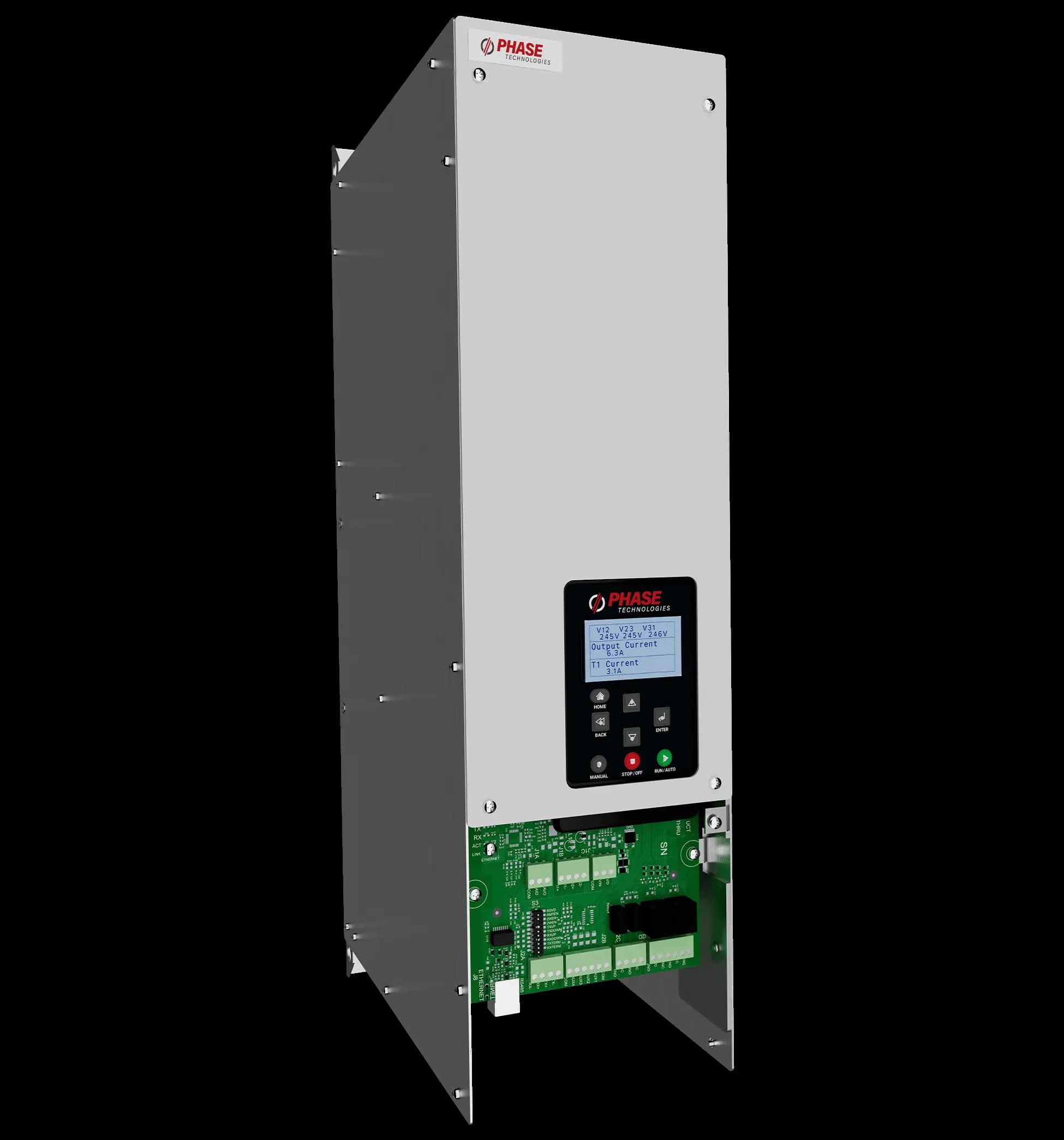

LHX 50HP

The 1LH line is powered by our LHX variable frequency drive combined with our configured panel options to bring you a custom unit for your operation.

Panel Shop Options

Output Filter

    AuxPower

      MCCB – Service rated

        HOA Switch

          Speed Pot

            Run & Fault Light

              Power Supply

                Surge Protection

                • Protec
                • Strikesorb

                Leg Kit

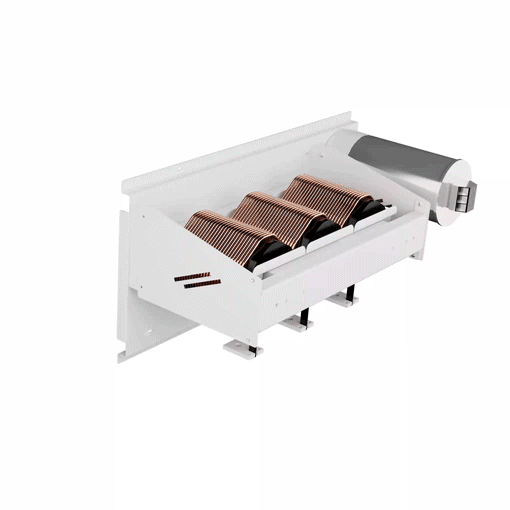

                  Output Filters

                  Output filters are necessary when motor leads exceed 50 ft. Without filters, long leads allow reflected harmonics to create dangerous voltage spikes that can exceed the insulation rating of the motor cables and windings.

                  Over time, these voltage spikes will degrade the insulation and result in motor faults. An output dV/dt (50ft to 850ft) or sine filter (50ft to 3000ft+) can be installed in the panel at the factory on most LH and DX Series systems. External filters can be placed as a stand alone on the output.

                  A filter reduces harmonics in the PWM output voltage, smoothing the waveforms to reduce vibration in the motor. Filters also reduce common mode currents in the motor windings that can discharge through motor bearings, causing pitting and premature motor failure.

                  CAUTION: Long leads between the unit and the motor with an unfiltered PWM voltage can lead to dangerous voltage rise from reflected harmonics. Very long leads, such as in deep well submersible pump applications, may require the use of a sine wave filter to remove most of the harmonics from the waveform.

                  nomenclature
                  1LH Nomenclature

                  Inside The Panel

                  Engineered for maximum performance with minimal components, Phase Technologies configured panels are the definition of simplicity and efficiency. Gone are the days of large enclosures with small drives, heaps of wires, and bulky components. Enjoy the perfectly sized enclosure with all the necessary add-ons, intuitively crafted into a 3R enclosure.

                  Inner Panel Design

                  Drive:

                  The 1LH is powered by a Phase Technologies LHX VFD

                  Enclosure:

                  Configured panels come standered with NEMA 3R all steel enclosures made in house.

                  Circuit Breaker:

                  Protect your drive with a Circuit Breaker wich comes standard with Phase units.

                  Integrated LCL:

                  Larger horsepower panels include an integrated LCL standard.

                  Output Filter:

                  Built with components to limit peak voltage, these filters are recommended with lead lengths up to and above 1,000 feet.

                  ENC6 Custom Panel

                  product overview

                  1LH Models
                  Input Voltage: 230, Input Phase: 1-Phase
                  ModelHorsepowerInput VoltageOutput VoltageRated Input CurrentRated Output Current Configure
                  1LH005523023026 A18 A
                  1LH0077.523023037 A24 A
                  1LH0101023023048 A31 A
                  1LH0151523023072 A46 A
                  1LH0202023023097 A62 A
                  1LH205523046026 A9 A
                  1LH2077.523046037 A13 A
                  1LH2101023046050 A18 A
                  1LH2151523046067 A25 A
                  1LH2202023046097 A31 A
                  1LH23030230460139 A46 A
                  1LH24040230460196 A61 A
                  1LH25050230460226 A77 A
                  Input Voltage: 460, Input Phase: 1-Phase
                  ModelHorsepowerInput VoltageOutput VoltageRated Input CurrentRated Output Current Configure
                  1LH405546046013 A9 A
                  1LH4077.546046019 A13 A
                  1LH4101046046026 A18 A
                  1LH4151546046036 A25 A
                  1LH4202046046048 A31 A
                  1LH4252546046060 A38 A
                  1LH4303046046072 A46 A
                  1LH4404046046098 A61 A
                  1LH45050460460121 A77 A
                  1LH46060460460143 A91 A
                  1LH47575460460170 A107 A
                  1LH4100100460460226 A142 A
                  1LH4125125460460273 A172 A
                  1LH4150150460460315 A198 A
                  1LH4200R200460460398 A250 A
                  1LH Documents

                  GEN2 (Black Keypad, 2024+)

                  Technical Specifications

                  Input Power

                  Input Phase

                  Single-Phase

                  Input Voltage

                  230 V | 460 V

                  Input Voltage Range

                  190 V — 264 V | 440 V — 520 V

                  Input Frequency

                  50/60 Hz

                  Output Power

                  Output Phase

                  Three-Phase

                  Nominal Output Voltage

                  230 V | 460 V

                  Output Voltage Range

                  100 V – 270 V | 200 V — 530 V

                  Output Frequency

                  5 Hz – 120 Hz

                  Horsepower

                  5 HP - 800 HP

                  Output Power

                  1.5 - 409 kW

                  Switching Frequency

                  2 kHz – 5 kHz

                  Output

                  V/f control Torque Control (Optional)

                  Show More Specs
