A three-phase motor needs three voltages, equal in magnitude and 120° apart. That balance is what keeps a motor cool and long-lived. When the voltages drift even slightly out of balance, the motor pays for it in heat — and heat is what kills motors. A 3.5% voltage imbalance can raise winding temperature by roughly 25%, cutting insulation life in half. Poor voltage balance is one of the most common, most overlooked, and most destructive power quality problems.
What Is Voltage Balance?
Voltage balance is the ideal condition in which the three line-to-line voltages of a three-phase system are equal and spaced exactly 120° apart. Voltage imbalance is any departure from that ideal — when the three legs no longer measure the same voltage. In the real world, unequal loading and supply problems push those values apart and erode the balance the motor depends on.
NEMA defines percent voltage unbalance using the maximum deviation from the average voltage — sometimes called the Line Voltage Unbalance Rate (LVUR):
% Voltage Unbalance = (Max Deviation from Average Voltage) ÷ (Average Voltage) × 100
NEMA MG-1 definition · measured line-to-lineNEMA MG-1 explicitly warns against continuous operation above 5%. Most utilities target less than 3% at the service entrance — but imbalance often grows worse inside the facility, downstream of the meter, where the equipment owner is responsible for it.
What Throws It Off Balance?
Voltage imbalance almost always traces back to uneven impedance or uneven loading across the three phases. Common culprits include:
- Unequal single-phase loads: Lighting, heaters, welders, and office loads tapped unevenly across the three phases is the single most common cause.
- Large single-phase loads on a three-phase service that pull one leg down relative to the others.
- Open-delta (V-V) transformer banks serving a mix of single- and three-phase loads.
- Blown fuses on power-factor correction capacitor banks, which silently unbalance the system the moment one phase drops out.
- Loose or corroded connections, undersized conductors, or a high-resistance joint on one phase.
- Utility-side issues — unbalanced distribution loading, faulted transformers, or unequal line impedance.
A small voltage imbalance produces a much larger current imbalance. As a rule of thumb, percent current unbalance runs roughly 6 to 10 times the percent voltage unbalance — so a 2% voltage imbalance can drive a 12–20% current imbalance in the motor windings.
How to Measure It
Measuring voltage imbalance takes nothing more than a true-RMS meter and three readings taken line-to-line, at the motor terminals, under normal load. Work the NEMA formula in three steps:
- Step 1 — Measure all three line-to-line voltages: VAB, VBC, VCA.
- Step 2 — Average the three readings.
- Step 3 — Find the leg that deviates most from that average, then divide that maximum deviation by the average and multiply by 100.
Worked Example
Suppose a 480 V service measures 477 V, 470 V, and 463 V across its three legs:
- Average = (477 + 470 + 463) ÷ 3 = 470 V
- Maximum deviation = 477 − 470 = 7 V
- % Unbalance = (7 ÷ 470) × 100 = 1.49%
Always measure under real operating load — imbalance frequently looks fine at no load and worsens as load increases.
The Impact on Motors
When phase voltages are unbalanced, the system develops a negative-sequence voltage — a component that rotates opposite to the motor's normal field. This counter-rotating flux induces high-frequency currents in the rotor and disproportionately large currents in the stator windings. The result is heat, concentrated and uneven, exactly where the motor can least tolerate it.
"When the line voltages applied to a polyphase induction motor are not equal, unbalanced currents in the stator windings will result. A small percentage voltage unbalance will result in a much larger percentage current unbalance. Consequently, the temperature rise of the motor operating at a particular load and percentage voltage unbalance will be greater than for the motor operating under the same conditions with balanced voltages."
§ 20.24 of the NEMA MG 1-2016 Standard (the standard covering induction motors)
This is actually reasonably clear (for a technical standards document): balanced voltage good, unbalanced voltage not good. But what does this mean for the motor of your conveyor, grinder, saw, dust collector, lathe, or whatever your three-phase load might be?
In the face of unbalanced voltage (phase-to-phase), a flux is produced in the air gap between the rotor and stator that works against the rotation of the rotor. Even a small amount of voltage unbalance can cause excessive increases in current. Excessive current means excessive heat.
Ok, rotary and static phase converters will make a little more heat in my motor. What's the big deal? How much heat are we talking here? What is the real-world effect of not having balanced voltage?
First: Motor Winding Insulation
| % Voltage Unbalance | Winding Temp (°C) | Winding Temp (°F) | Expected Motor Life (Years)* |
|---|---|---|---|
| 0% | 120 | 248 | 4.5 |
| 1% | 122 | 252 | 4+ |
| 2% | 128 | 262 | 2.5 |
| 3% | 138 | 280 | 1.5 |
| 4% | 152 | 306 | 0.5 |
| 5% | 170 | 338 | 0.17 (2 Months) |
* Years indicated here assumes the motor is running 24/7.
The temperature of the windings will increase by approximately twice the percent of voltage unbalance squared.
2 × (% UNBALANCE)² = Degrees C winding temperature increase
Motors with Class B insulation (the most common insulation type in the United States) should have an insulation life of 20,000 hours (about 2.25 years) at the maximum allowable operating temperature of 130 C, which is based around operating with a 2% unbalance.
As you can see in the table of expected motor life, a significant voltage unbalance could regularly bring the motor(s) in your equipment to end-of-life, even at only hobby-level usage. Expected motor life (in years) is based on continuous-duty, 24/7 usage.
Second: Grease-Packed / Greasable Bearings
Many industrial greases have a useful life or re-grease interval of 40,000 hours (4.5 years) when operated within a normal industrial range of about 40–70 C (104–158 F) and modest speed and/or load.
The life of the grease can drop to as low as a few weeks at operating temperatures of 170 C (338 F). Under these conditions it would take an extremely rigorous maintenance schedule to stay ahead of the degradation of the grease in the bearings. Environmental factors certainly apply, but the heat transmitted to the bearings in a motor is directly proportional to the heat generated by the motor windings.
Real-World Effect: Heat Destroys Motors
The failure modes of induction motors are most often the bearings or motor winding insulation. The expected life span of both bearings and windings are driven quite dramatically by heat. Not only that, both bearings and motor windings deteriorate in the same temperature range because both the winding insulation material and the grease in the bearings are derived from petroleum. High temperatures in these petroleum-based materials cause oxidation, and the rate of oxidation doubles for every 10 C increase in temperature. As a direct consequence, the life of motor winding insulation and grease in motor bearings is cut in half for every 10 C (18 F) increase in temperature.
NEMA Derating
Because of this heating, NEMA MG-1 requires that motors be derated when operated on unbalanced voltage — you must give up rated horsepower to keep the motor from overheating:
| Voltage Unbalance | NEMA Derating Factor | Approx. Added Winding Temp Rise |
|---|---|---|
| 0% (balanced) | 1.00 — full rated load | None |
| 1% | 1.00 — no derate | ~2% |
| 2% | 0.95 | ~8% |
| 3% | 0.88 | ~18% |
| 4% | 0.82 | ~32% |
| 5% | 0.75 | ~50% |
The Full Cost
- Shortened motor life from accelerated insulation breakdown.
- Reduced efficiency — wasted energy shows up as heat, not torque.
- Nuisance overload tripping as one phase draws excess current.
- Torque pulsations and vibration that stress bearings and couplings.
- Lost capacity — a derated motor can no longer deliver its nameplate horsepower.
Simplified Breakdown Of How Well Phase Converters Maintain Voltage Balance
Phase Perfect® vs. other phase conversion solutions:

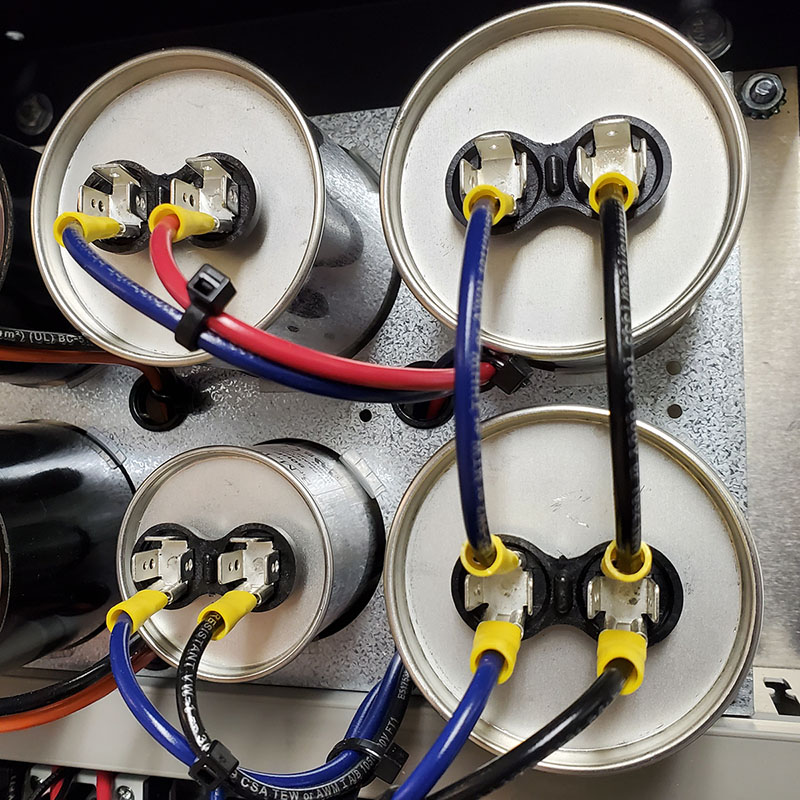

Static Phase Converter
Permanent imbalance while running.

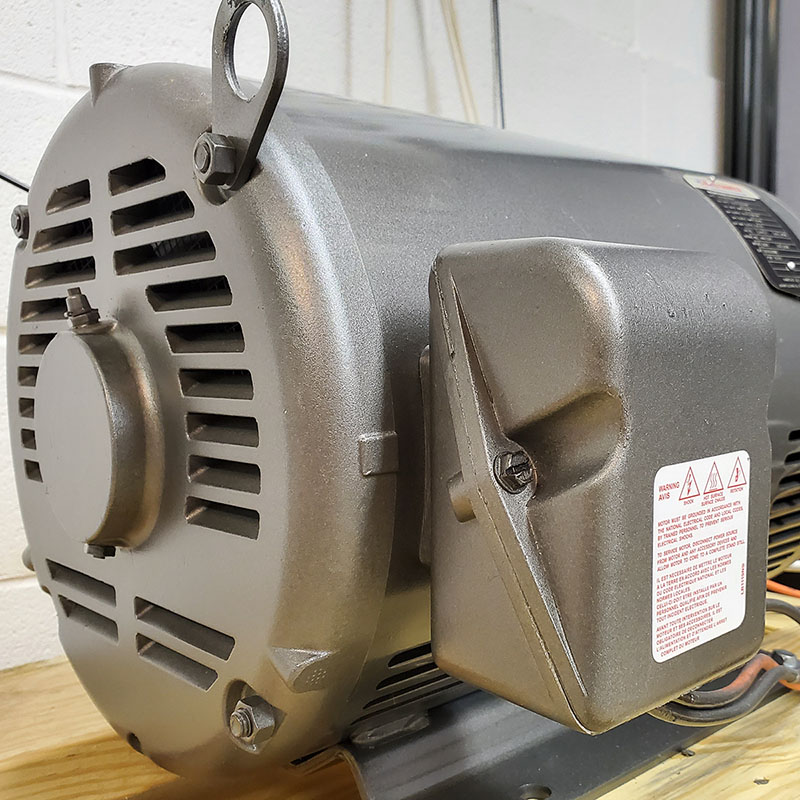

Rotary Phase Converter
Only provides near-optimal voltage balance within a narrow operating window.

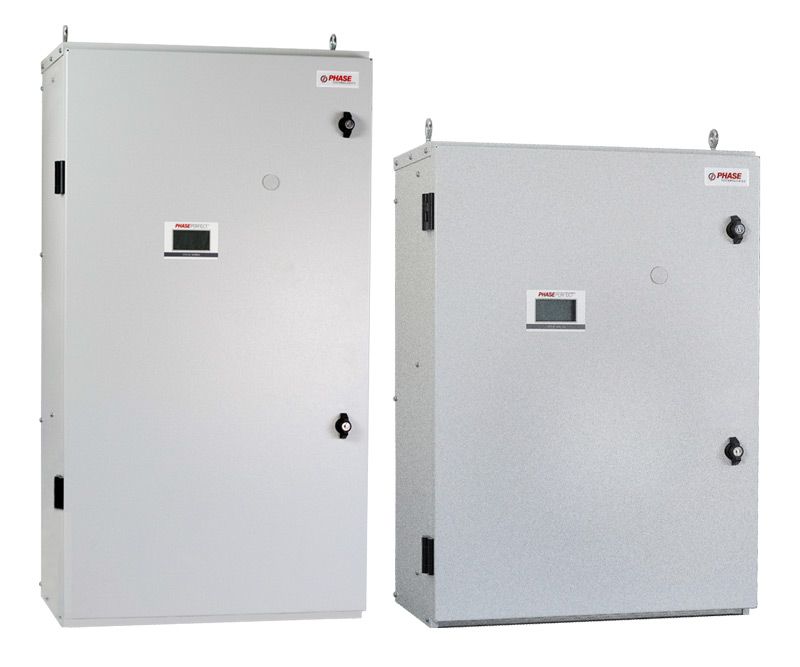

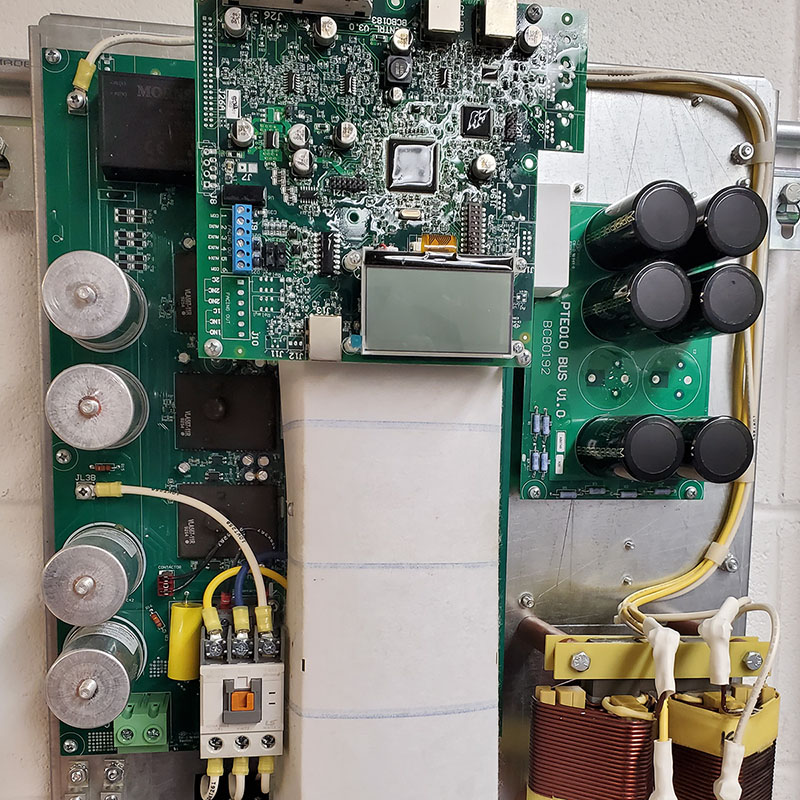

Phase Perfect® Converter
Computer controlled to maintain optimal voltage balance at all times.
Rotary phase converters can let the manufactured leg swing 8% or more as load changes. Phase Technologies' digital phase converters hold output voltage balance to within a few percent across the full load range — protecting motors instead of stressing them.
If you are seeing nuisance trips, premature motor failures, or unexplained heat on a three-phase system, voltage balance is one of the first things to measure — and one of the easiest to restore with the right equipment. Our applications engineers can help you size a converter or drive for your service.
