ES Series -
Quick Start Guide
Installation
QUICKSTART ES, Revision 008
What is included
Mounting the VFD

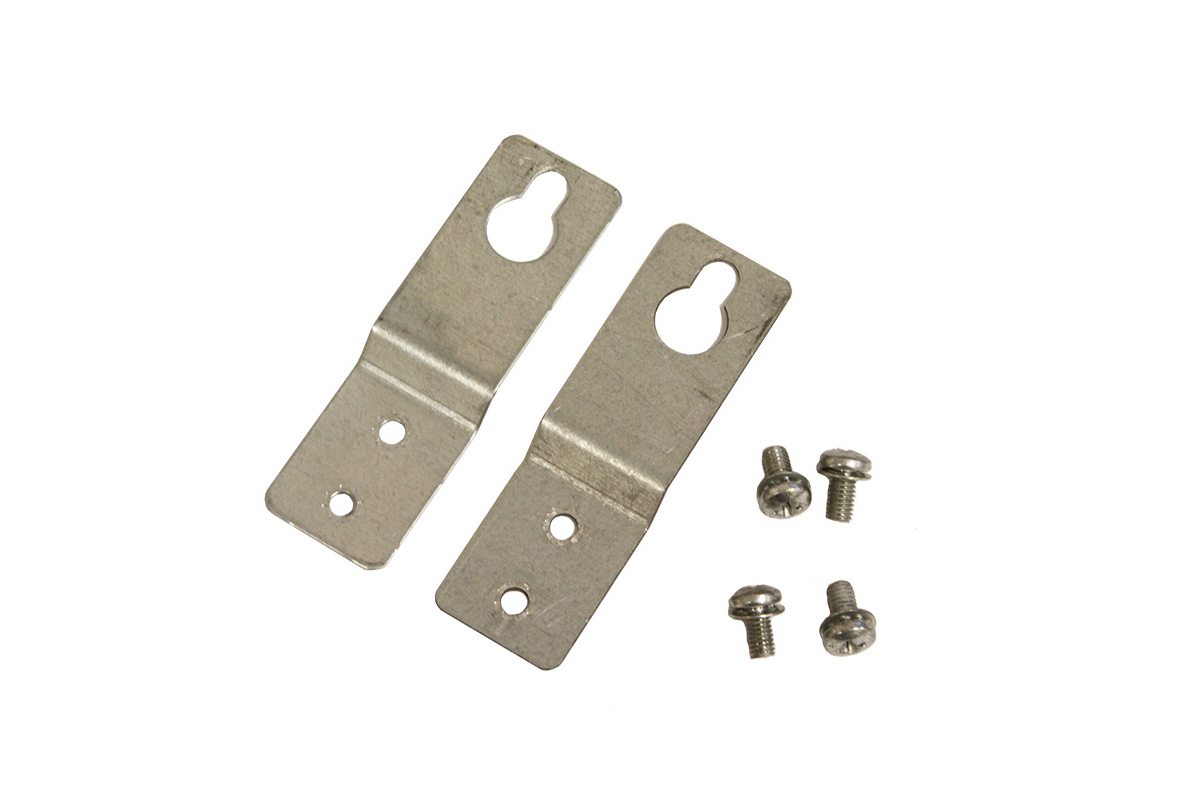

- Fasten mounting brackets to back of enclosure with supplied screws.
- Install fasteners to wall 7.5" (190mm) center to center. Max fastener size 1/4".
Note: 18" (450mm) clearance below and 6" (150mm) around required for ventilation.
Connect Wiring
- Remove (3) front screws and remove cover.

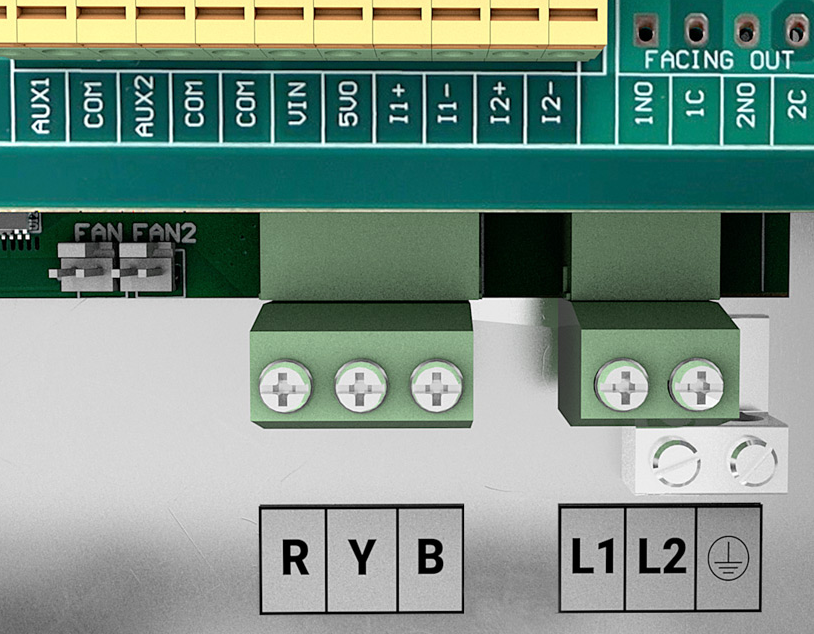

- Connect motor leads to the J2 terminal block.
Note: Connector is removable for easier access - Connect power leads to the J1 terminal block.
| Terminal | Description |
| L1, L2 | Input power terminals |
| Y, B | 2-wire motor output terminals |
| R, Y, B | 3-wire motor output terminals |
| R | Auxiliary/Start/ Run winding |
| Y | Motor winding common |
| B | Main Winding |
| GND | Earth ground |
-
Secure the ground wire into the lug marked with the ground symbol.
Note: 4ohms or less to earth ground recommended
-

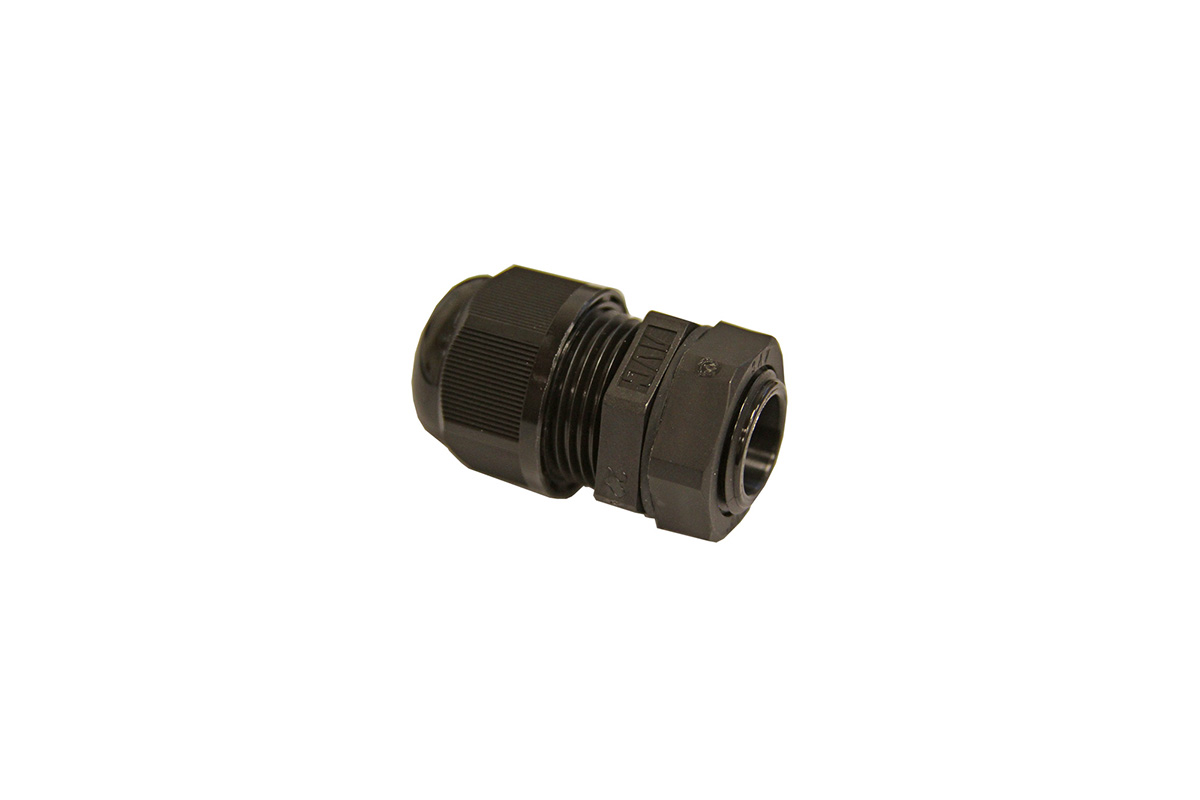

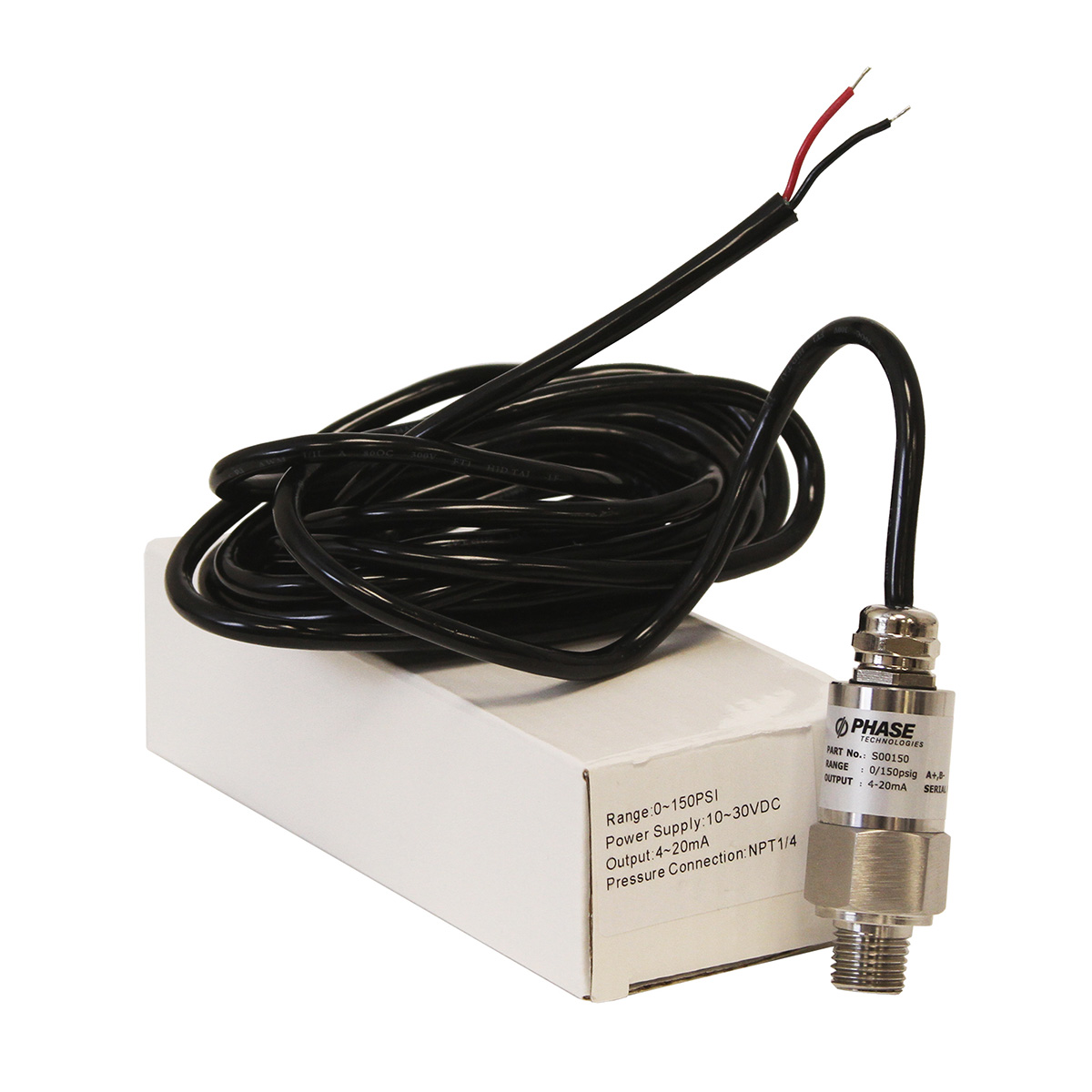

Install transducer into a 1/4" NPT non-metallic fitting and run the wire back to the VFD, through the cord grip up to the terminal area and cut to length.
Note: Cut transducer leads to length, DO NOT coil extra wire or connect shielding ground wire. DO NOT run transducer leads next to motor leads. If necessary, only cross transducer and motor leads at a 90 degree angle.

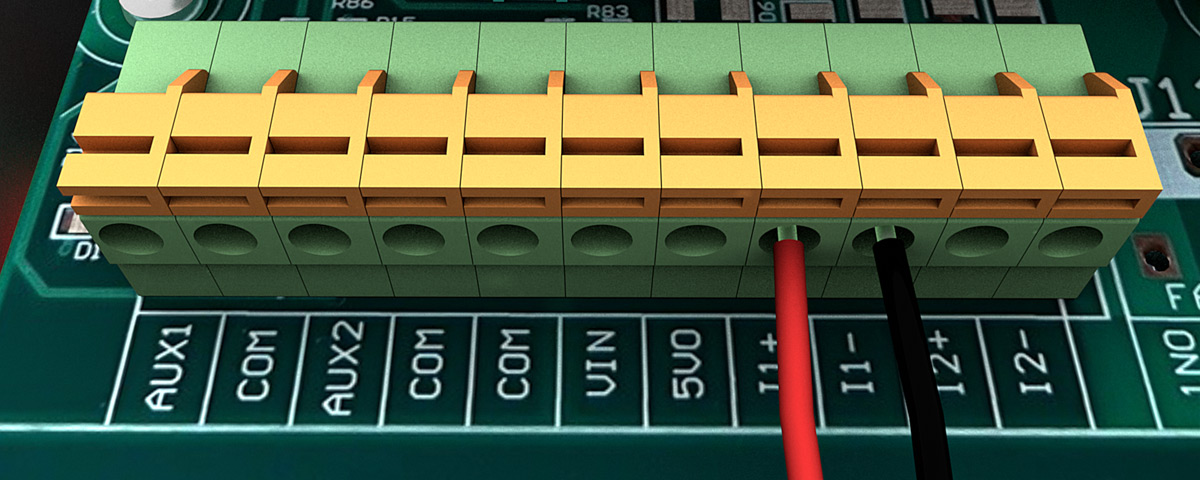

Caution: Do not over tighten cord grip - Install the Black wire into the spring loaded I1- terminal and the remaining White or Red wire into the I1+ terminal.
Powering up the VFD
- Replace the cover securely and then enable power to the VFD.
- To bypass initial setup, press the HOME button, or, to
use the Perfect Pressure wizard, choose Yes (ENTER) when prompted.
Note: Hold the BACK and ENTER buttons for 3 seconds to reset the VFD to default configuration

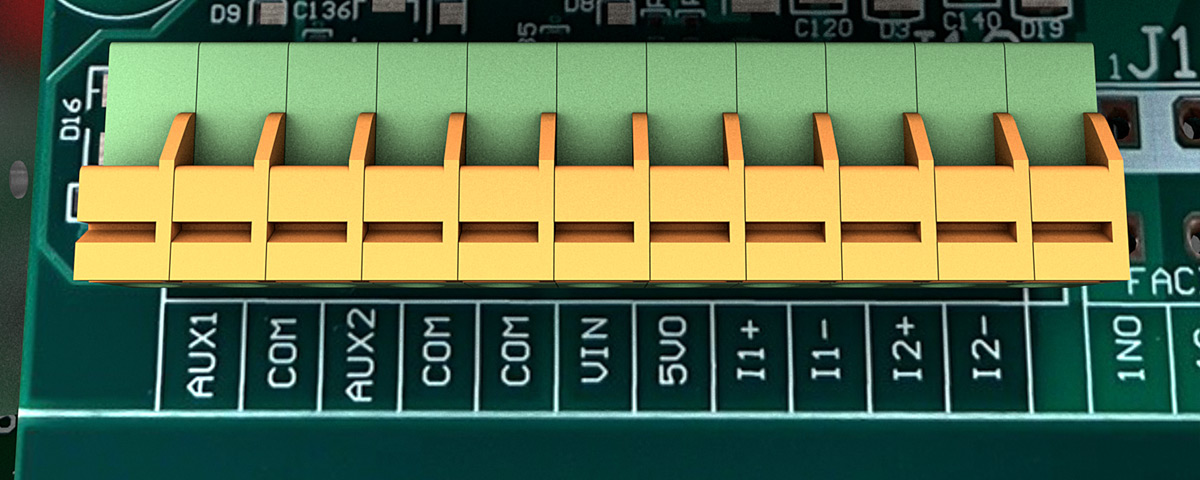

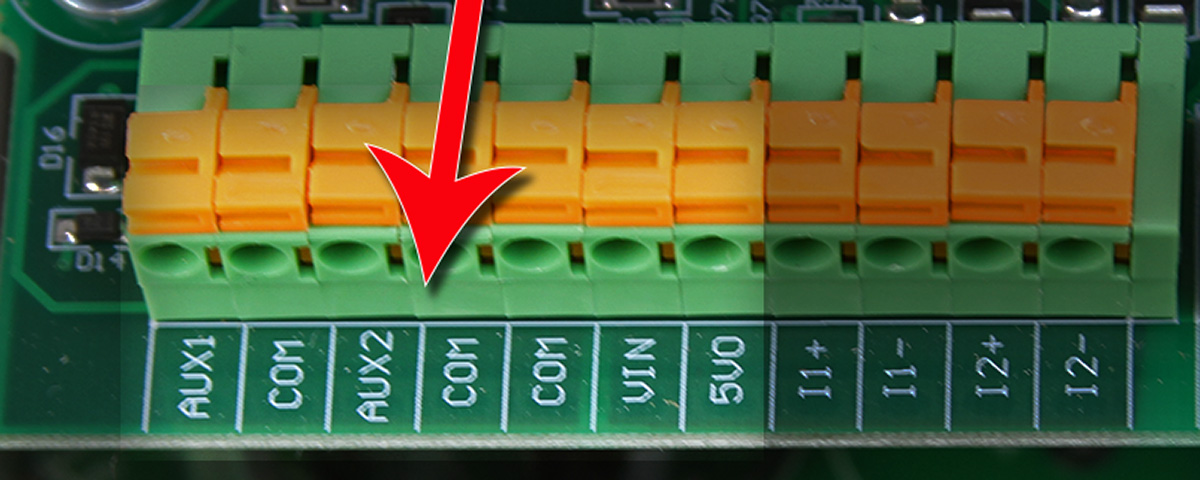

Optional: To add an overpressure switch or float switch, make those connections to AUX2 and COM.
Caution: No voltage may be introduced on these terminals.
