Variable Frequency Drives & Digital Phase Converters

1LHE SERIES 240 > 480V

Phase Converting, Voltage-Doubling VFD

1LHE2xxR 5 - 15 HP

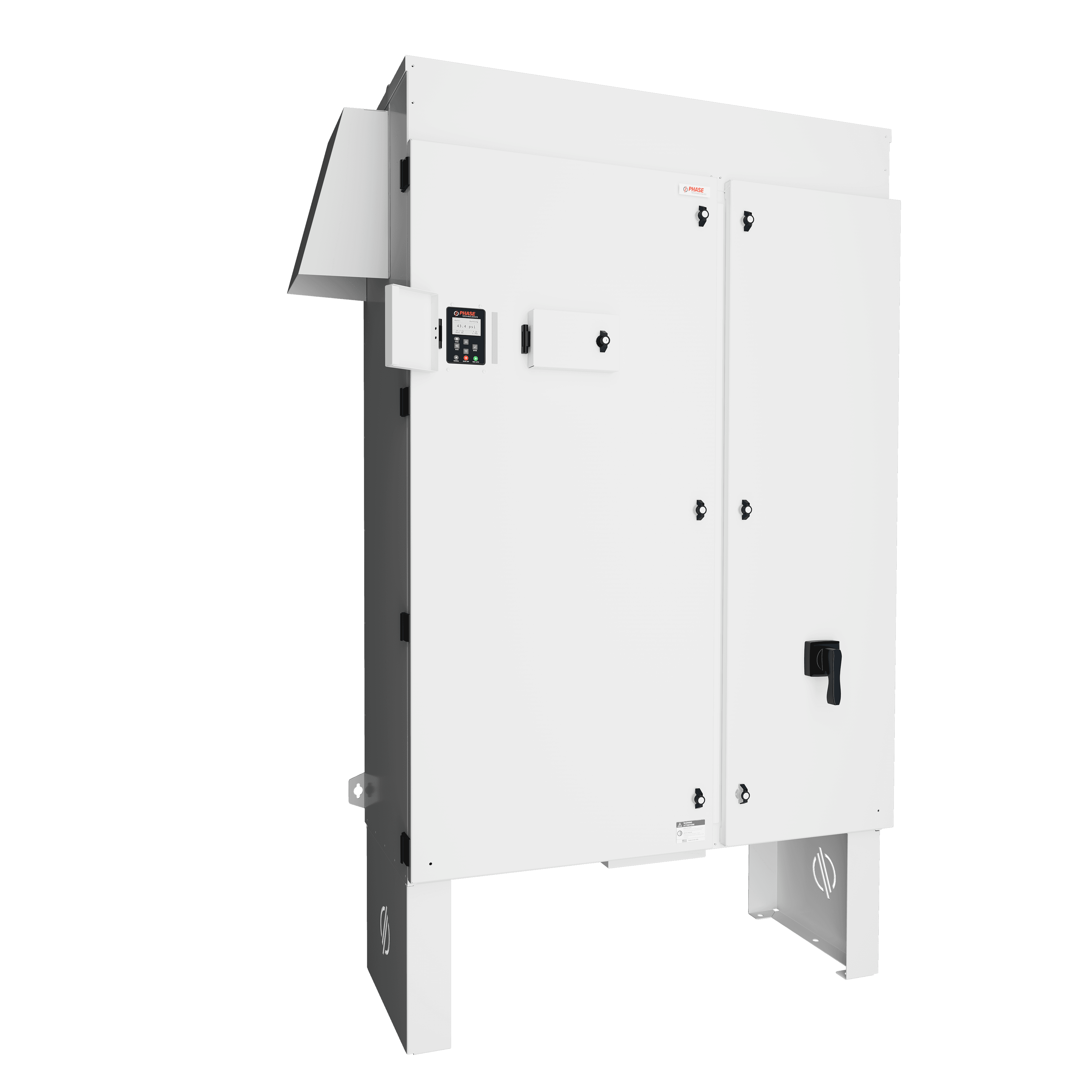

Single-phase to three-phase, voltage doubling Variable Frequency Drive (VFD) w/active front end technology, best in-class cooling, integrated in a field serviceable 3R enclosure.

Build & PriceBuild Now
Send by EmailSend Now
Have Questions? Contact Us
Social Media



Description

Summary

1LHE Series drives have a unique active switching input module that does not produce high levels of harmonic distortion. These drives are IEEE 519 compliant with no additional harmonic filter required. The active front end also provides the added benefit of power conditioning for the VFD. This allows the user to set the output voltage and control the pump without concern for utility power fluctuations.

Phase converting 1LHE Series drives utilize a single-phase active front to generate clean and balanced three-phase 460/480v output. You can even take a 208v single-phase input, and output 480v three-phase, perfect for those deep well sets where limited/dirty power is available.

Industries served: Wells Pumps, Irrigation Pumps, Motor Control
Standard Features
  • NEMA 3R Enclosure w/Insect Guards
  • Easy Perfect Pressure™ Setup
  • 2-Year Warranty
  • 122° F (50° C) Rated
  • Easy Field Serviceability

Accessories

Optional Integrated Add-Ons
  • MCCB & Service Rated Disconnect
  • Sine Wave Output Filter
Optional Kitted Add-Ons
  • Strikesorb Surge Protection
  • Protec Surge Protection
  • HOA & Speed Potentiometer
  • 0 - 150 psi Transducer

Specifications

Models: 1LHE205R 1LHE207R 1LHE210R 1LHE215R
General Power Specs
Rated HP 5 HP 7 HP 10 HP 15 HP
Rated Input Current 26A 37A 50A 67A
Input Voltage 208/240V, single-phase
Rated Output Current 9A 13A 18A 24A
Output Voltage 480V, three-phase
Other Specs
Recommended Breaker Size N/A N/A N/A N/A
Enclosure size (H x W x D) 32 x 19 x 19" 32 x 19 x 19" 32 x 19 x 19" 32 x 19 x 19"
Shipping Weight N/A N/A N/A N/A
Shipping Type Ground Ground Ground Ground
